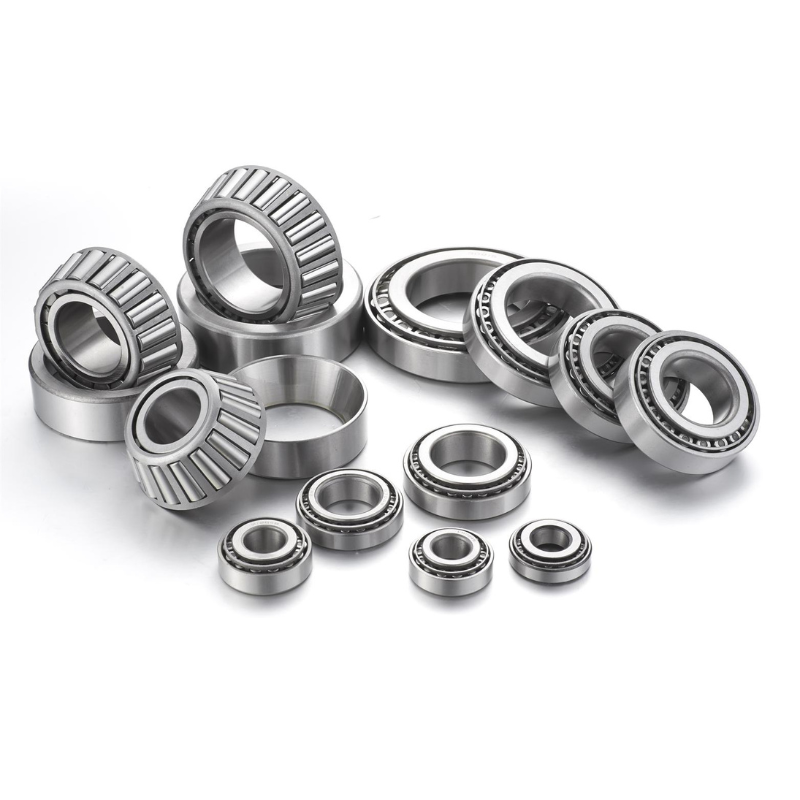

Inch Series Tapered Roller Bearing(Single Row) D 15.875-34.925mmmm

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY

FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

Get Quotation

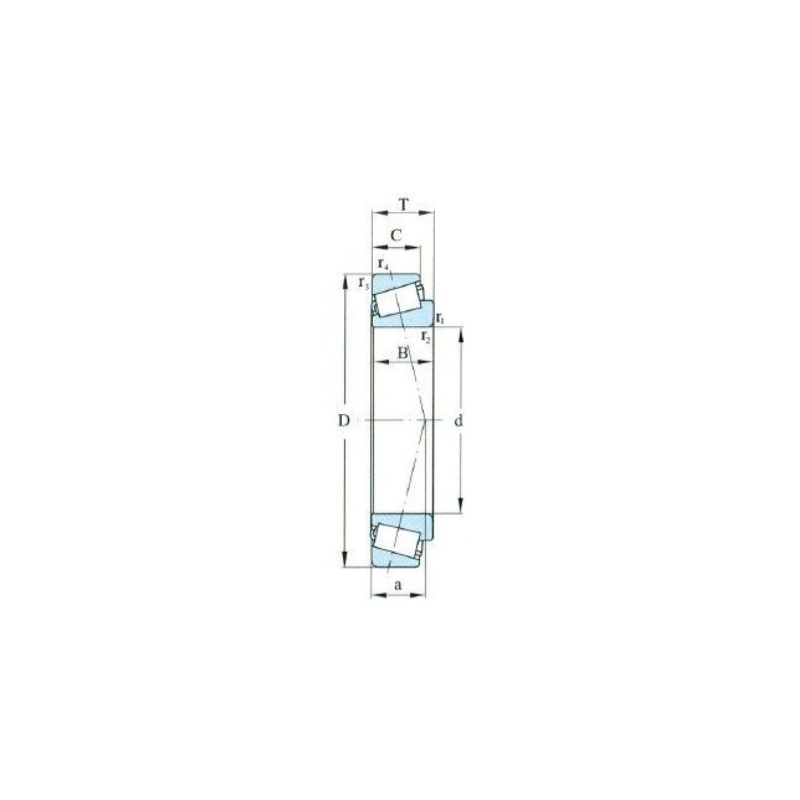

Boundary dimensions (mm)	Load rating (KN)	Limiting speed (r/min)	Bearing number cone/cup	Load centre mm	Abutment and fillet dimensions (mm)	Axial load factors	Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo
15.875	42.862	14.288	14.288	9.525	1.5	1.5	18.0	17.7	8500	12000	11590/11520	13	23.0	23.0	36.0	32.0	38.0	2.0	4.5	1.0	1.0	0.72	0.84	0.45	0.1000
15.875	53.975	22.225	21.839	15.875	2.3	2.3	39.6	39.0	7500	10000	21063/21212	16	23.0	28.0	45.0	40.0	50.0	3.0	6.0	1.0	2.0	0.60	1.00	0.60	0.3000
17.462	39.878	13.843	14.605	10.668	1.3	1.3	22.8	22.3	9000	13000	LM11749/LM11711	9	23.0	24.0	35.0	33.5	36.0	2.0	3.0	1.0	1.0	0.28	2.10	1.10	0.0830
19.050	45.237	15.494	16.637	12.065	1.3	1.3	29.5	28.9	2900	8500	LM11949/LM11911	10	25.0	25.5	38.5	38.0	41.0	3.0	3.0	1.0	1.0	0.30	2.00	1.10	0.1240
19.050	53.975	22.225	21.839	15.875	1.5	2.3	41.4	39.1	7500	10000	21075/21212	16	26.0	26.0	45.0	40.0	50.0	3.0	6.0	1.0	2.0	0.60	1.00	0.60	0.2460
21.430	50.005	17.526	18.288	13.970	1.3	1.3	36.9	38.0	8000	11000	M12649/M12610	11	28.0	28.0	43.5	43.0	46.0	3.0	3.5	1.0	1.0	0.28	2.10	1.10	0.1700
22.225	50.005	17.526	18.288	13.970	1.3	1.3	36.9	38.0	8000	11000	M12648/M12610	11	28.5	28.5	43.5	43.0	46.0	3.0	3.5	1.0	1.0	0.28	2.10	1.10	0.1650
23.812	50.292	14.224	14.732	10.668	1.5	1.3	28.1	30.3	7400	9900	L44640/L44610	11	28.5	30.5	44.5	44.0	47.0	2.0	2.0	1.0	1.0	0.37	1.60	0.88	0.1370
25.400	50.292	14.224	14.732	10.668	3.5	3.5	28.1	30.3	7500	10000	L44642/L44610	11	33.0	28.0	43.5	43.5	47.0	2.0	3.5	1.0	1.0	0.37	1.60	0.90	0.1250
25.400	50.292	14.224	14.732	10.668	1.3	1.3	28.1	30.3	7500	10000	L44643/L44610	11	33.0	32.0	43.5	43.5	47.0	2.0	3.5	1.0	1.0	0.37	1.60	0.90	0.1270
25.400	59.530	23.368	23.114	18.288	0.8	1.5	49.1	57.3	6300	9000	M84249/M84210	18	32.5	36.0	51.0	48.0	56.0	3.0	4.0	0.5	1.0	0.55	1.10	0.60	0.3300
25.400	61.912	19.050	20.638	14.288	0.8	2.0	46.5	54.0	6000	8000	15101/15243	13	31.5	32.5	55.0	54.0	58.0	4.0	4.5	0.5	1.5	0.35	1.71	0.94	0.3000
25.400	62.000	19.050	20.638	14.288	3.5	1.3	46.5	54.0	6000	8000	15100/15245	13	31.5	38.0	55.0	54.0	58.0	4.0	4.5	3.5	1.3	0.35	1.71	0.94	0.2990
25.400	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15101/15245	14	38.0	31.5	55.0	54.0	58.0	4.0	4.5	0.6	1.0	0.35	1.71	0.94	0.3100
25.400	62.000	19.050	20.638	14.288	1.5	1.3	46.5	54.0	6000	8000	15102/15245	14	31.5	34.0	55.0	54.0	58.0	4.0	4.5	1.5	1.3	0.35	1.71	0.94	0.3010
25.400	62.000	20.638	20.638	15.875	0.8	1.3	46.5	54.0	6000	8000	15101/15244	14	31.5	32.5	55.0	54.0	58.0	4.0	4.5	0.8	1.3	0.35	1.71	0.94	0.3150
25.400	63.500	20.638	20.638	15.875	0.8	1.3	46.5	54.0	6000	8000	15101/15250	14	31.5	32.5	56.0	55.0	59.0	4.0	4.5	0.8	1.3	0.35	1.71	0.94	0.3330
25.400	63.500	20.638	20.638	15.875	0.8	1.5	46.5	54.0	6000	8000	15101/15250X	14	38.0	31.5	56.0	54.0	58.0	3.0	4.5	0.6	1.0	0.35	1.71	0.94	0.3330
25.400	64.292	21.433	21.433	16.670	1.5	1.5	51.5	64.5	6000	8000	M86643/M86610	18	36.5	38.0	54.0	53.0	61.0	4.0	4.5	1.5	1.5	0.55	1.10	0.60	0.3710
26.988	50.292	14.224	14.732	10.688	3.5	1.3	28.1	30.3	7000	10000	L44649/L44610	11	33.0	38.0	43.5	43.5	47.0	2.0	3.5	3.0	1.0	0.37	1.60	0.90	0.1170
26.988	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15106/15245	13	33.0	33.5	55.0	54.0	58.0	2.0	4.7	0.8	1.3	0.35	1.71	0.94	0.2110
28.000	50.292	14.150	16.740	10.668	3.5	3.5	27.4	34.5	7000	9500	F-0676/L45410	11	33.0	39.5	44.5	44.0	48.0	3.0	3.5	3.0	3.0	0.37	1.60	0.90	0.1260
28.575	62.000	19.050	20.638	14.288	3.5	1.3	46.5	54.0	6000	8000	15112/15245	13	33.0	40.0	55.0	54.0	58.0	4.0	4.5	3.0	1.0	0.35	1.70	0.90	0.2770
28.575	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15113/15245	14	34.0	34.5	55.0	54.0	58.0	4.0	4.5	0.8	1.3	0.35	1.71	0.94	0.2800

Boundary dimensions (mm)	Load rating (KN)	Limiting speed (r/min)	Bearing number cone/cup	Load centre mm	Abutment and fillet dimensions (mm)	Axial load factors	Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo
28.575	64.292	21.433	21.433	16.670	1.5	1.5	51.5	64.5	6000	8000	M86647/M86610	18	38.0	36.0	56.5	51.0	60.0	3.0	4.5	1.0	1.0	0.54	1.10	0.60	0.3480
28.575	69.850	23.812	25.357	19.050	2.3	1.3	69.0	81.5	5700	7600	2578/2523	13	35.0	39.0	61.5	61.0	64.0	4.0	4.5	2.0	1.0	0.27	2.19	1.21	0.4830
29.000	50.292	14.224	14.732	10.688	3.5	1.3	27.4	34.5	7000	9500	L45449/L45410	11	34.0	40.5	45.0	43.5	48.0	3.0	3.5	3.0	1.0	0.37	1.60	0.90	0.1140
29.987	62.000	19.050	20.638	14.288	1.3	1.3	46.5	54.0	6000	8000	15117/15245	13	35.0	36.5	55.0	54.0	58.0	4.5	5.0	1.3	1.3	0.35	1.71	0.94	0.2690
30.000	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58.0	5600	7400	14117A/14276	16	39.5	42.5	60.0	59.0	63.0	3.5	4.0	3.5	1.3	0.38	1.57	0.86	0.3690
30.112	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15116/15245	13	35.5	36.0	55.0	54.0	58.0	4.5	5.0	0.8	1.3	0.35	1.71	0.94	0.2680
30.162	64.292	21.433	21.433	16.670	1.5	1.5	51.9	52.3	6000	8000	M86649/M86610	18	38.0	38.0	56.5	51.0	60.0	3.0	4.5	1.0	1.0	0.54	1.10	0.60	0.3410
30.162	69.850	23.812	25.357	19.050	2.3	1.3	69.0	81.5	5700	7600	2558/2523	14	36.5	40.0	61.0	60.0	64.0	4.0	5.0	2.3	1.3	0.27	2.19	1.21	0.4680
30.213	62.000	19.050	20.638	14.288	3.5	1.3	46.5	54.0	6000	8000	15118/15245	13	38.0	40.0	55.0	54.0	58.0	4.0	4.5	3.0	1.0	0.35	1.71	0.94	0.2650
30.213	62.000	19.050	20.638	14.288	1.5	1.3	46.5	54.0	6000	8000	15119/15245	13	35.5	37.5	55.0	54.0	58.0	4.0	4.5	1.5	1.3	0.35	1.71	0.94	0.2670
30.213	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15120/15245	13	35.5	36.0	55.0	54.0	58.0	4.0	4.5	0.8	1.3	0.35	1.71	0.94	0.2670
30.226	69.012	19.845	19.583	15.875	0.8	3.3	48.5	58.0	5600	7400	14116/14274	16	36.5	37.0	59.0	58.0	63.0	3.0	4.0	0.8	3.3	0.38	1.57	0.86	0.3660
30.226	69.012	19.845	19.583	15.875	0.8	1.3	48.5	58.0	5600	7400	14116/14276	16	36.5	37.0	60.0	59.0	63.0	3.0	4.0	0.8	1.3	0.38	1.57	0.86	0.3700
30.226	72.085	22.385	19.583	18.415	0.8	2.3	48.5	58.0	5600	7400	14116/14283	18	36.5	37.0	60.0	59.0	65.0	3.0	4.0	0.8	2.3	0.38	1.57	0.86	0.4470
30.955	64.292	21.433	21.433	16.670	1.5	1.5	51.0	64.5	5600	8000	M86648A/M86610	18	38.0	42.0	54.0	53.0	61.0	4.5	5.0	1.5	1.5	0.55	1.10	0.60	0.3330
31.750	54.000	15.000	15.000	12.000	3.0	3.0	34.2	42.9	6100	8100	F-0687/F-0671	12	38.0	44.0	51.0	50.0	54.0	3.0	4.0	3.5	1.0	0.42	1.44	0.79	0.1330
31.750	59.131	15.875	16.764	11.811	3.6	1.3	35.9	47.7	6300	8500	LM67048/LM67010	13	38.0	44.5	52.0	51.0	55.0	3.0	4.0	3.5	1.0	0.40	1.50	0.80	0.1830
31.750	59.131	15.875	16.764	11.811	1.5	1.3	35.9	47.7	6300	8500	LM67049/LM67010	13	38.0	44.5	52.0	51.0	55.0	3.0	4.0	1.0	1.0	0.40	1.50	0.80	0.1800
31.750	59.131	15.875	16.764	11.811	0.8	1.3	35.9	47.7	6300	8500	LM67049A/LM67010	13	38.0	44.5	52.0	51.0	55.0	3.0	4.0	0.5	1.0	0.40	1.50	0.80	0.1860
–	62.000	18.161	19.050	14.288	4.0	1.3	46.5	54.0	6000	8000	15123/15245	13	38.0	43.5	55.0	54.0	58.0	4.0	3.5	3.0	1.0	0.35	1.70	0.90	0.2440
–	62.000	19.050	20.638	14.288	3.5	1.3	46.5	54.0	6000	8000	15125/15245	15	36.5	42.5	55.0	54.0	58.0	4.5	5.0	3.5	1.3	0.35	1.70	0.90	0.2530
–	62.000	19.050	20.638	14.288	0.8	1.3	46.5	54.0	6000	8000	15126/15245	13	36.5	37.0	55.0	54.0	58.0	4.5	5.0	0.8	1.3	0.35	1.70	0.90	0.4090
–	63.500	19.749	19.050	15.875	3.5	1.3	44.6	49.0	5600	7500	15123/15250	14	38.0	43.5	56.0	53.0	58.0	3.0	3.5	3.0	1.0	0.35	1.70	0.90	0.2740
–	66.421	25.400	25.357	20.638	0.8	3.3	69.3	81.5	5600	7500	2580/2520	17	40.0	38.0	58.0	55.0	63.0	3.0	4.5	0.6	3.0	0.27	2.20	1.30	0.4000

Boundary dimensions (mm)	Load rating (KN)	Limiting speed (r/min)	Bearing number cone/cup	Load centre mm	Abutment and fillet dimensions (mm)	Axial load factors	Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo
–	69.012	19.845	19.583	15.875	0.8	1.3	48.3	56.2	5600	7400	14124/14276	16	37.5	38.5	60.0	59.0	63.0	3.0	4.0	0.8	1.3	0.38	1.57	0.86	0.3630
–	69.012	19.845	19.583	15.875	3.5	3.3	48.3	56.2	5600	7500	14125A/14274	15	37.0	44.0	60.0	59.0	63.0	3.0	3.0	3.0	3.0	0.38	1.60	0.86	0.3540
–	69.012	19.845	19.583	15.875	3.5	1.3	48.3	56.2	5600	7400	14125A/14276	16	37.5	44.0	60.0	59.0	63.0	3.0	4.0	3.5	1.3	0.38	1.57	0.86	0.3000
–	69.850	23.812	25.357	19.050	0.8	1.3	69.3	81.5	5600	7500	2580/2523	17	37.5	38.5	61.0	60.0	64.0	4.5	5.0	0.8	1.3	0.27	2.20	1.30	0.4540
–	69.850	23.812	25.357	19.050	0.8	1.5	69.3	81.5	5600	7500	2580/2523S	17	37.5	38.5	61.0	60.0	63.0	4.5	5.0	0.8	1.5	0.27	2.20	1.30	0.4530
–	69.850	23.812	25.357	19.050	3.5	1.3	69.3	81.5	5600	7500	2582/2523	17	37.5	44.0	61.0	60.0	64.0	4.5	5.0	3.5	1.3	0.27	2.19	1.21	0.4510
–	76.200	29.370	28.575	23.020	0.8	3.3	78.0	105.0	5100	6800	HM89440/HM89410	23	44.5	45.5	62.0	61.0	73.0	5.5	6.5	0.8	3.3	0.55	1.10	0.60	0.6860
33.338	68.262	22.225	22.225	17.462	0.8	1.5	55.0	69.5	5600	7500	M88048/M88010	19	41.0	39.5	60.5	54.0	64.0	3.0	4.5	0.6	1.0	0.54	1.10	0.60	0.3800
33.338	68.262	22.225	22.225	17.462	0.8	2.3	55.0	69.5	5600	7500	M88048/M88011	19	41.0	39.5	59.0	54.0	64.0	3.0	4.5	0.6	2.0	0.54	1.10	0.60	0.3800
33.338	69.012	19.845	19.583	15.875	3.5	1.3	48.3	56.2	5600	7500	14130/14276	15	43.0	45.0	61.5	57.0	63.0	3.0	3.5	3.0	1.0	0.37	1.60	0.90	0.3440
33.338	69.012	19.845	19.583	15.875	0.8	1.3	48.3	56.2	5600	7500	14131/14276	15	38.5	39.5	60.0	59.0	63.0	3.0	4.0	0.8	1.3	0.38	1.60	0.86	0.3510
33.338	69.850	23.812	25.357	19.050	0.8	1.3	69.0	81.5	5600	7500	2581/2523	16	39.0	39.5	61.0	60.0	64.0	4.5	5.0	0.8	1.3	0.27	2.19	1.21	0.4400
33.338	69.850	23.812	25.357	19.050	3.5	1.3	69.0	81.5	5600	7500	2585/2523	16	39.0	45.0	61.0	60.0	64.0	4.5	5.0	3.5	1.3	0.27	2.19	1.21	0.4350
33.338	73.025	29.370	27.783	23.020	0.8	3.3	72.0	97.0	5400	7100	HM88547/HM88510	24	46.0	43.0	60.0	59.0	70.0	4.0	3.5	0.8	3.3	0.55	1.10	0.60	0.6040
33.338	76.200	23.812	25.654	19.050	3.5	3.3	73.0	90.5	5100	6800	2785/2720	17	40.0	46.0	66.0	64.0	70.0	4.5	5.0	3.5	3.3	0.30	1.98	1.09	0.5510
33.338	76.200	23.812	25.654	19.050	1.5	3.3	73.0	90.5	5100	6800	2790/2720	17	40.0	42.0	66.0	64.0	70.0	4.5	5.0	1.5	3.3	0.30	1.98	1.09	0.5530
33.338	76.200	29.370	28.574	23.020	0.8	3.3	78.0	105.0	4800	6300	HM89443/HM89410	23	44.0	40.0	64.5	58.0	72.0	3.0	6.0	0.6	3.0	0.54	1.10	0.60	0.6680
33.338	76.200	29.370	28.574	23.020	3.8	3.3	78.0	105.0	4800	6300	HM89444/HM89410	23	44.0	40.0	64.5	58.0	73.0	3.0	6.0	3.8	3.3	0.54	1.10	0.60	0.6650
34.925	65.088	18.034	18.288	13.970	3.6	1.3	46.2	58.7	5600	7500	LM48548/LM48510	14	42.0	47.0	58.0	57.0	61.0	3.0	4.0	3.5	1.0	0.37	1.60	0.90	0.2640
34.925	65.088	18.034	18.288	13.970	0.8	1.3	46.2	58.7	5600	7500	LM48548A/LM48510	14	42.0	47.0	58.0	57.0	61.0	3.0	4.0	0.8	1.0	0.37	1.60	0.90	0.2900
34.925	65.088	21.082	18.288	17.018	3.5	1.5	46.2	58.7	5600	7500	LM48548/LM48511A	14	42.0	47.0	58.0	57.0	61.0	3.0	4.0	3.0	1.0	0.37	1.60	0.90	0.2800
34.925	69.012	19.845	19.583	15.875	1.5	3.3	48.2	56.2	5600	7500	14137A/14274	15	43.0	42.5	58.0	57.0	63.0	3.0	3.5	1.0	3.0	0.37	1.60	0.90	0.3280
34.925	69.012	19.845	19.583	15.875	1.5	1.3	48.2	56.2	5600	7500	14137A/14276	15	43.0	42.5	61.5	57.0	63.0	3.0	3.5	1.0	1.0	0.37	1.60	0.90	0.3400
