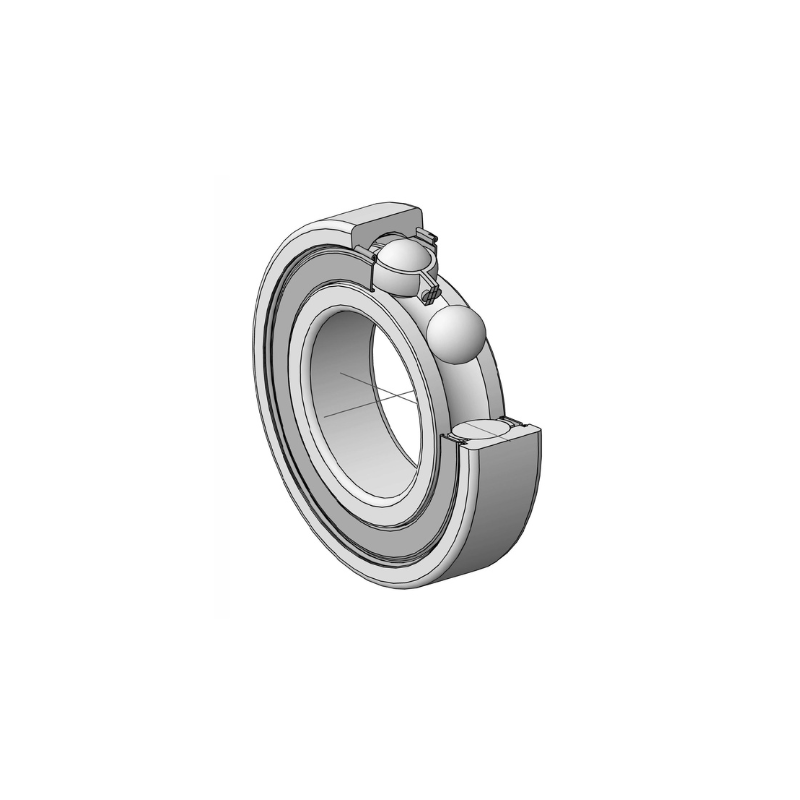

1604 2Z Single Row Deep Groove Ball Bearing
Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.
Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
1604 2Z Single Row Deep groove ball bearing detail Specifications:
Inch series
Material:52100 Chrome Steel
Construction:Single Row
Seal Type : 2RS
Weight : 0.008 kg
Main Dimensions:
Bore diameter (d) : 3/8” (9.525 mm)
Outer diameter (D) : 7/8” (22.225 mm)
Width (B): 9/32” (7.144 mm)
Chamfer Dimension( r) min. : 0.4 mm
Dynamic load ratings (Cr) : 2.54 KN
Static load ratings(Cor) : 1.34 KN
