Double Row Tapered Roller Bearing D 280-1450mm

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY

FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

Get Quotation

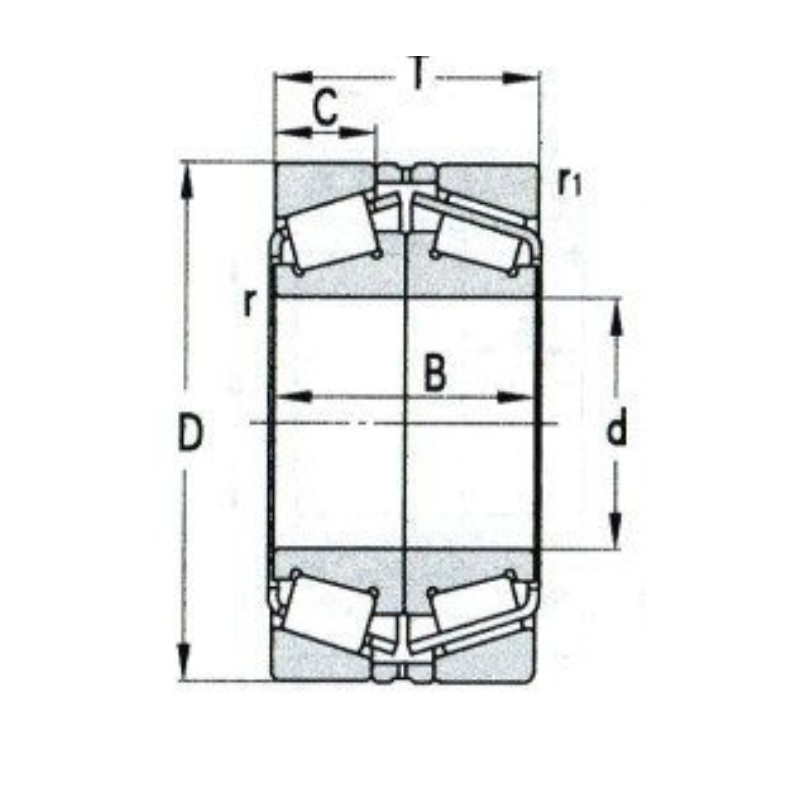

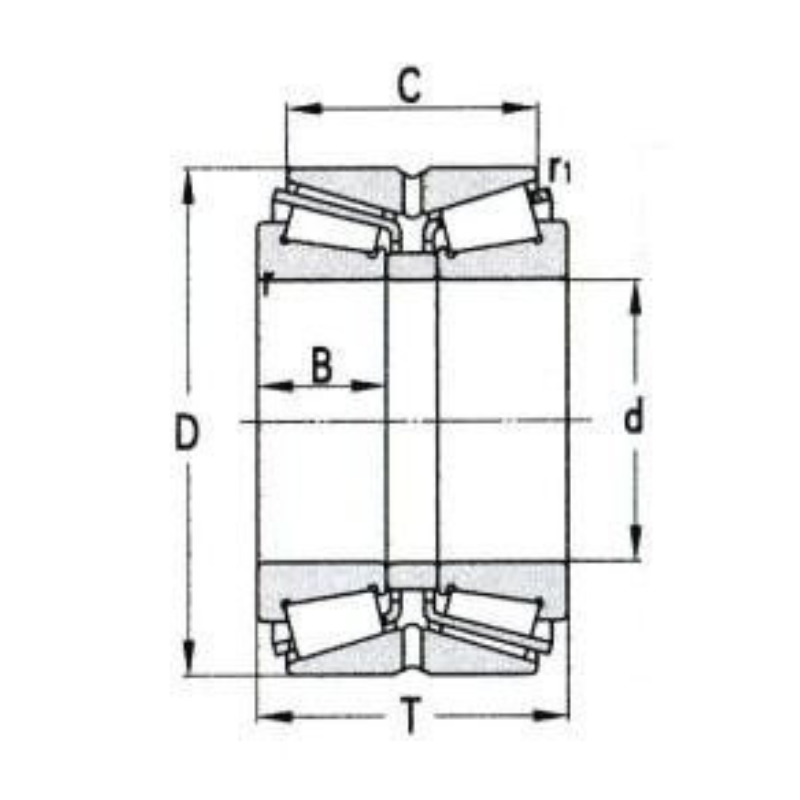

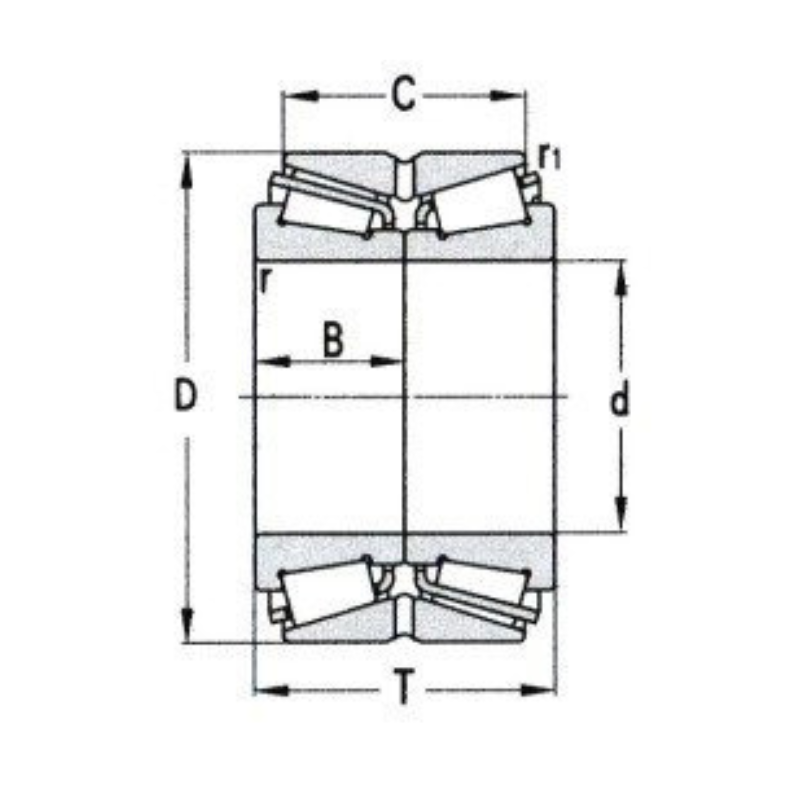

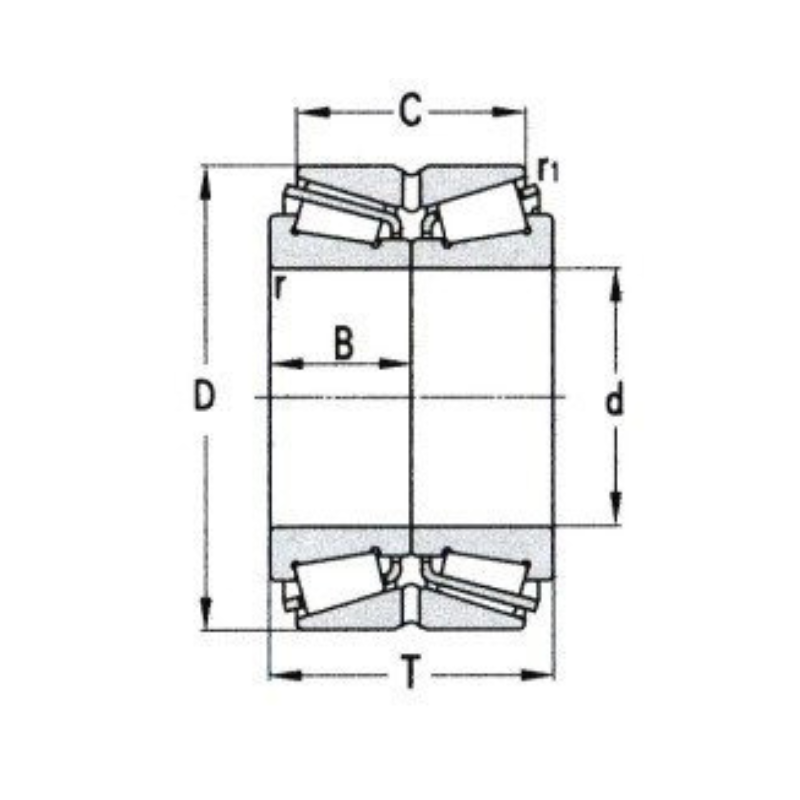

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	D(mm)	T(mm)	B(mm)	C(mm)	rmin	r1min	Cr	Cor	Grease	Oil	e	Y1	Y2	Yo
240	400	210	95	163	3.7	1.3	2060	4050	630	840	352148	0.31	2.18	3.24	2.13	98.1
240	400	128	59	114	5	1.5	1240	2270	720	1000	350648	0.43	1.55	2.31	1.52	60
240	480	220	200	–	2.5	5	3340	5400	580	770	370648	0.72	0.94	1.4	0.9	184
259.5	481	250	250	98	2.5	5	3630	7100	580	770	3706/259.5	0.45	1.5	2.23	1.47	214
260	360	134	60	108	3	0.9	1010	2500	670	900	352952X2	0.3	2.23	3.32	2.18	39.7
260	360	133	60	109	3	1.1	1010	2500	670	900	352952X2-1	0.3	2.23	3.32	2.18	39.8
260	360	92	40	62	3	1	630	1370	700	950	352952X2-3	0.7	0.96	1.44	0.94	25.5
260	360	141	63.5	110	3	1	1120	2550	670	900	352952	0.41	1.66	2.47	1.62	39.0
260	360	134	60.5	108	3	1	1040	2550	670	900	352952X2-3/YB2	0.29	2.23	3.32	2.18	38.3
260	400	150	75	110	4.7	1.1	1410	2630	630	840	352052X2-1	0.35	1.95	2.99	1.91	60.3
260	400	155	72	108	9.5	1.6	1400	2630	630	840	352052X2-3	0.35	1.95	2.99	1.91	62.2
260	400	174	87	65	1..3	4	1900	4100	630	840	32052/DF	0.43	1.55	2.31	1.52	82.6
260	400	186	82	146	5	1.3	1750	3750	630	840	352052X2	0.29	2.31	3.45	2.26	79.3
260	420	170	170	70	5	5	1970	4050	630	840	370652D	0.48	1.41	2.09	1.37	88.4
260	420	170	170	70	5	5	1970	4050	630	840	370652D/HC	0.48	1.41	2.09	1.37	88.4
260	430	180	90	130	7.5	2.3	1560	2990	630	840	350652D1	0.35	1.95	2.9	1.91	87.9
260	440	144	–	128	5	1.5	1820	3400	560	750	352152X2/YA6-1	0.37	1.8	2.7	1.8	87.5
260	440	225	100	180	4	2.3	2410	4750	580	770	352152X2/YA6	0.24	2.84	4.23	2.78	124
260	480	284	–	220	5	1.5	3990	7300	520	680	350652-1	0.43	1.6	2.3	1.6	211
280	380	129	120	52	0.9	2.5	1100	2770	620	820	32956X2A/DF	0.32	2.1	3.13	2.05	44.1
280	380	134	60	108	3	0.9	1030	2650	620	820	352956X2	0.32	2.1	3.13	2.05	44.0
280	380	134	60	108	3	1	1030	2650	620	820	352956X2/P5	0.32	2.1	3.13	2.05	44.0
280	389.5	92	92	30	4	4	870	1880	600	800	370656	0.82	0.82	1.22	0.8	33.3
280	420	186	82	146	5	1.3	1890	4000	580	770	352056X2	0.37	1.83	2.72	1.79	81.5

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	D(mm)	T(mm)	B(mm)	C(mm)	rmin	r1min	Cr	Cor	Grease	Oil	e	Y1	Y2	Yo
280	420	188	83	154	5	1.3	1890	4000	580	770	352056X2-1	0.37	1.83	2.72	1.79	82.7
280	420	189	83.5	154	5	1..3	1960	4200	580	770	352056X2-2	0.35	1.95	2.99	1.91	82.9
280	460	146	65	130	6	2	1810	3300	580	770	351156X2/YA6	0.4	1.68	2.5	1.64	88.8
280	470	250	–	180	6.4	1.5	3430	6300	500	650	350656	0.46	1.5	2.2	1.4	156
300	420	160	72	128	4	1.1	1670	3614	580	770	2960X2/P6	0.28	2.39	3.56	2.34	60.8
300	420	159	71.5	128	4	1.1	1820	3610	580	770	2960X2A-1/HCE	0.28	2.39	3.56	2.34	63.6
300	420	159	71.5	128	4	1.1	1820	3610	580	770	2960X2A-1/HCYA10	0.28	2.39	3.56	2.34	63.5
300	420	152	152	53	3	3	1630	3300	580	770	372960/HCYAD	0.67	1	1.5	1	64.4
300	440	105	105	–	4	4	980	2050	560	740	370660D/HCYAD	0.88	0.77	1.15	0.8	55.5
300	440	104.749	105	35	4	4	980	2050	560	740	370660D/HCYAD-1	0.88	0.77	1.15	0.8	55.4
300	440	105	105	35	4	4	1020	2300	560	740	370660D/HCYAT	0.88	0.77	1.15	0.8	56.3
300	460	210	95	165	5	1.3	2240	4800	560	740	352060X2	0.36	1.85	2.76	1.81	118
300	500	205	90	152	5	1.5	2400	4450	530	710	351160	0.32	2.12	3.15	2.077	141
300	500	205	90	152	6	2.5	2400	4450	530	710	351160/YA6	0.32	2.12	3.15	2.07	141
300	500	205	90	152	5	1.5	2400	4450	530	710	351160/HAC3	0.32	2.12	3.15	2.077	141
300	500	205	90	152	6	2.5	2400	4450	530	710	351160/HCYAD	0.32	2.12	3.15	2.07	141
300	500	200	90	160	6	3	2300	4450	530	710	351160X2	0.32	2.12	3.15	2.07	142
300	500	203	91	152	5	1.5	3000	4950	530	710	351160X2-1/HCE	0.4	1.68	2.5	1.64	148
300	560	170	170	50	5	5	3520	3800	500	660	370660/HCC9	0.81	0.823	1.23	0.81	197
305.034	499.948	200.025	200.025	63.5	3.3	6.5	2630	4850	530	710	3706/305X4D/HCEYAD	0.88	0.77	1.15	0.75	143
305.034	499.948	200.025	200.025	63.5	3.3	6.4	2630	4850	530	710	3706/305X4D/HCEYAD-1	0.88	0.77	1.15	0.75	143
305.034	499.948	200.025	200.025	63.5	3.3	6.4	2630	4850	530	710	3706/305X4D/HCEYADT	0.88	0.77	1.15	0.75	144
305.07	500	200	200	70	6.4	4.8	1870	3550	530	710	3706/305X4	0.79	0.854	1.27	0.835	122
305.07	500	200	200	67	6.4	4.8	2350	5020	530	710	3706/305X4D/HCYA3-1	0.88	0.77	1.15	0.8	155

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	D(mm)	T(mm)	B(mm)	C(mm)	rmin	r1min	Cr	Cor	Grease	Oil	e	Y1	Y2	Yo
305.07	500	200	200	67	3	5	2400	5100	530	710	3706/305X4/HCC9YAB	0.88	0.77	1.15	0.8	163
305.1	500	200	200	70	6.4	4.8	1870	3550	450	620	3706/305.1D/HCYAB	0.79	0.85	1.27	0.83	115
305.2	500	200	200	70	6.4	4.8	1870	3550	530	710	3706/305.2D	0.79	0.854	1.27	0.835	115
320	440	160	72	128	4	1	1650	3900	530	710	352964X2	0.31	2.15	3.21	2.11	67.4
320	440	195	72	62	4	1	1650	3900	530	710	32964X2AT195/DBCR375	0.31	2.15	3.21	2.11	77.5
320	480	151	66.5	121	5	1.5	1870	3550	530	710	350664	0.32	2.08	3.1	2.04	88.9
320	480	220	100	186	5	1.1	2540	5750	530	710	352064	0.46	1.47	2.19	1.44	134
320	524	185	185	–	3	4.8	2530	5150	450	600	370664-1	0.88	0.77	1.15	0.8	152
320	540	160	160	–	2	5	2220	4350	430	570	370664-2	0.83	0.81	1.2	0.8	161
320	620	280	280	115	3	5	5300	10600	400	550	370664X2	0.43	1.57	2.43	1.53	408
320	540	225	100	160	5	1.5	3100	5700	510	660	351164	0.4	1.68	2.5	1.64	181
330	540	176	176	62	5	5	2450	5100	430	570	370666/HCC9YAB	0.87	0.77	1.15	0.8	173
339	600.5	264	264	100	3	6	4800	9700	500	660	306/339/HCC9DFYAB	0.43	1.57	2.43	1.53	324
340	460	160	72	128	4	1.1	1540	4050	500	660	352968X2	0.31	2.15	3.2	2.1	71.0
340	520	180	82	135	5	1.5	2060	4100	480	640	351068	0.29	2.35	3.5	2.3	127
340	580	242	106	170	5	1.5	3100	6000	460	620	351168	0.42	1.6	2.38	1.56	235
340	580	238	107	190	6	2	3350	6600	370	500	351168X2	0.4	1.68	2.5	1.64	237
360	480	160	72	128	4	1	1640	2240	510	680	352972X2	0.33	2.05	3.05	2	74.7
360	540	169	70	134	6	2	2180	4400	460	620	351072X2	0.37	1.82	2.7	1.78	122
360	540	185	82	140	5	1.5	2880	6300	460	620	351072	0.37	1.82	2.7	1.78	120
360	540	185	82	140	5	1.5	2880	6300	460	620	351072/HCE-CB	0.37	1.82	2.7	1.78	120
360	560	160	160	–	3	5	2350	4640	380	500	370672	0.72	0.94	1.4	0.9	141
360	600	200	200	–	3	5	3000	5830	360	480	370672-1	0.94	0.72	1.07	0.7	221
360	600	242	106	170	5	1.5	3410	6800	400	520	351172	0.44	0.54	2.3	1.51	221

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	D(mm)	T(mm)	B(mm)	C(mm)	rmin	r1min	Cr	Cor	Grease	Oil	e	Y1	Y2	Yo
360	680	330	300	–	4	7.5	7200	13300	320	400	370672-2	0.6	1.1	1.7	1.1	541
360	680	330	300	–	4	7.5	6300	12000	320	400	370672/HC	0.6	1.1	1.7	1.1	526
379	681.5	307	307	115	5	6	5700	11500	530	710	306/379/DF	0.43	1.57	2.34	1.57	492
380	520	145	65	105	4	1.1	1660	3800	530	710	351976	0.38	1.77	2.64	1.73	78.8
380	520	149	65	112	4	1.1	1660	3800	530	710	351976X2	0.38	1.77	2.64	1.73	82.4
380	560	190	82	140	5	1.5	2880	6300	410	540	351076	0.39	1.75	2.61	1.71	137
380	560	200	200	–	5	5	2800	6540	380	500	370676	0.79	0.85	1.25	0.8	166
380	565	200	200	–	5	5	2800	6540	380	500	370676-1	0.79	0.85	1.25	0.8	170
380	570	180	180	70	2	5	2910	6150	410	540	371076X3D/HCEYAB	0.87	0.78	1.16	0.76	162
380	570	180	180	70	2	5	2910	6150	410	540	371076X3D/HCYAD	0.87	0.78	1.16	0.76	162
380	620	242	106	170	5	1.5	3410	6850	410	540	351176	0.46	1.47	2.18	1.43	250
380	660	380	–	310	14	3.5	7620	15900	300	400	350676	0.33	2	3	2	521
390	568	180	180	–	2	5	2350	5840	380	500	370678-1	0.83	0.81	1.2	0.8	156
390	567.5	180	180	70	3	5	2610	6520	380	500	370678/HCYA3	0.73	0.92	1.37	0.9	157
390	570	200	200	69	5	5	2800	7000	380	500	370678	0.83	0.81	1.2	0.8	166
390	590	200	200	–	5	5	2740	6530	360	480	370678-2	0.83	0.81	1.2	0.8	201
390	590	220	220	–	3	5	2740	6530	360	480	370678-3	0.83	0.81	1.2	0.8	250
400	540	150	65	105	4	1.1	1650	3850	530	710	351980/P5	0.45	1.5	2.23	1.47	84.6
400	600	189	190	63	5	4	2680	5500	410	540	371080X2	0.38	1.78	2.65	1.74	174
400	600	206	90	150	5	1.5	2890	6300	410	540	351080	0.38	1.78	2.65	1.74	179
400	600	206	90	150	5	1.5	2890	6300	410	540	351080/HAC3	0.38	1.78	2.65	1.74	179
400	600	206	90	150	6	2	2890	6300	410	540	351080/HCYAD	0.38	1.78	2.65	1.74	179
400	650	240	240	80	6	6	3740	8400	360	480	1-7017	0.87	0.78	1.16	0.76	299
400	650	240	240	80	6.4	6.4	3800	8200	360	480	1-7028	0.87	0.78	1.16	0.76	289
