Four-Row Tapered Roller Bearing Inch Series

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY
FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

Get Quotation

3.3	3.3	3.3	3.3	3400	8150	M255449DW/M255410-M255410D	125
288.925	11.375	406.4	16	298.45	11.75	298.45	11.75	3.3	3.3	3.3	3.3	3400	8150	M255449D/M255410-M255410D	125
292.1	11.5	422.275	16.625	269.875	10.625	269.875	10.625	SP	SP	3.3	3.3	3450	7950	EE330116D/330166-330167D	126
300.038	11.8125	422.275	16.625	311.15	12.25	311.15	12.25	3.3	3.3	3.3	3.3	3700	9400	HM256849D/HM256810-HM256810D	142
304.648	11.994	438.048	17.246	280.99	11.0626	279.4	11	3.3	3.3	48	4.8	3000	6650	M757448D/M757410-M757410D	130
304.648	11.994	438.048	17.246	280.99	11.0626	279.4	11	3.3	3.3	4.8	4.8	3000	6650	M757448DW/M757410-M757410D	130
304.8	12	419.1	16.5	269.875	10.625	269.875	10.625	1.5	1.5	6.4	6.4	2850	6800	M257149D/M257110-M257110D	112
304.8	12	482.6	19	365.125	14.375	377.825	14.875	3.3	3.3	3.3	3.3	4950	10300	3806/304.8	266
304.8	12	495.3	19.5	342.9	13.5	342.9	13.5	2	2	6.4	6.4	5000	9200	3806/304.8-1	243
304.8	12	501.65	19.75	336.55	13.25	336.55	13.25	2	2	6.4	6.4	4650	9200	3806/304.8-2	255
304.902	12.004	412.648	16.246	266.7	10.5	266.7	10.5	3.3	3.3	3.3	3.3	2930	7000	M257248DW/M257210-M257210D	102
305	12.0079	438.048	17.246	280.99	11.0626	279.4	11	3.3	3.3	4.8	4.8	2980	6600	M757449DW/M757410-M757410D	129
317.5	12.5	422.275	16.625	269.875	10.625	269.875	10.625	1.5	1.5	3.3	3.3	2980	8100	LM258648DW/LM259610-LM258610D	104
317.5	12.5	438.15	17.25	276.225	10.875	276.225	10.875	1.5	1.5	3.3	3.3	3450	8200	3806/317.5	132
317.5	-	447.675	17.625	327.025	12.875	327.025	12.875	3.3	3.3	3.3	3.3	4650	10700	HM259049D/HM259010-HM259010D	163

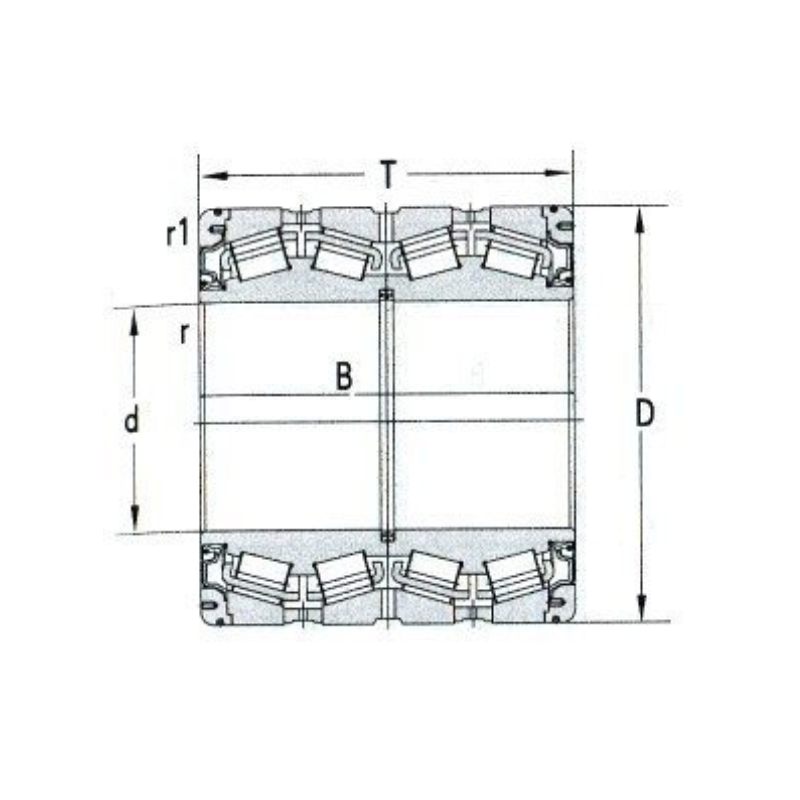

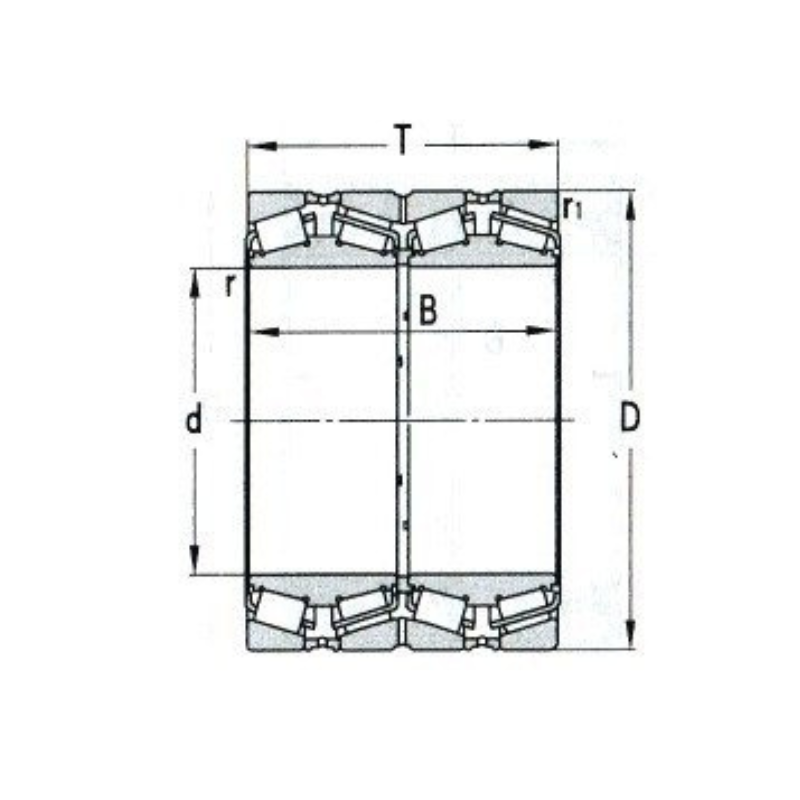

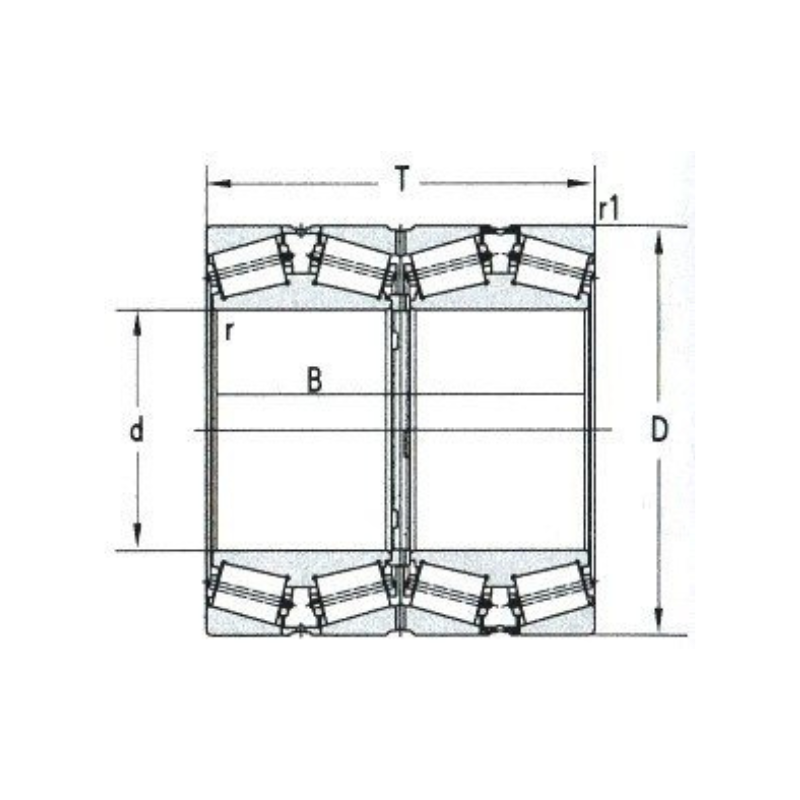

Basic dimensions (mm)	Chamfer dimensions	Basic load rating (KN)	Number	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	rmin(axial)	rmin(radial)	r1min(axial)	r1min(radial)	Cr	Cor
330.2	13	444.5	17.5	301.625	11.875	301.625	11.875	3.3	3.3	3.3	3.3	3550	9600	M260149DW/M260110-M260110D	134
330.302	13.004	438.023	17.245	247.65	9.75	254	10	1.5	1.5	3.3	3.3	2500	7300	EE138131D/138172-138173XD	109
333.375	13.125	469.9	18.5	342.9	13.5	342.9	13.5	3.3	3.3	3.3	3.3	4100	10100	HM261049DW/HM261010-HM261010D	186
341.312	13.4375	457.098	17.996	254	10	254	10	2	1.5	3.3	3.3	2350	7400	LM761648DW/LM761610-LM761610D	112
341.312	13.4375	457.098	17.996	254	10	254	10	2	1.5	3.3	3.3	2740	7050	LM761648D/LM761610-LM761610D-3	112
342.9	13.5	533.4	21	307.985	12.1254	301.625	11.875	3.3	3.3	3.3	3.3	4650	8750	EE971355D/972100-972103D	239
342.9	13.5	571.5	22.5	342.9	13.5	S42.9	13.5	3.3	3.3	6.4	6.4	6200	11500	EE536136D/536225-536226D	366
343.052	13.506	457.098	17.996	254	10	254	10	2	1.5	3.3	3.3	2670	7400	K1-LM761649DW/LM761610-LM761610D	110
343.052	13.506	457.098	17.996	254	10	254	10	2	1.5	3.3	3.3	2670	7350	LM761649DW/LM761610-LM761610D	110
343.052	13.506	457.098	17.996	254	10	254	10	1.5	1.5	3.3	3.3	2800	6900	LM761649DWSH/LM761610SH-LM761610DSH-3	111
345.281	13.5937	488.95	19.25	358.775	14.125	358.775	14.125	3.3	3.3	3.3	3.3	4800	12400	3806/345X4	239
346.075	13.625	488.95	19.25	358.775	14.125	358.775	14.125	3.3	3.3	3.3	3.3	4800	12400	HM262749D/HM262710-HM262710D	221
347.662	13.6875	469.9	18.5	292.1	11.5	292.1	11.5	3.3	3.3	3.3	3.3	2600	7950	M262449D/M262410-M262410D	142
347.662	13.6875	469.9	18.5	260.35	10.25	260.35	10.25	1.5	1.5	3.3	3.3	3750	10100	LM262449DW/LM262410-LM262410D	129
355.6	14	482.6	19	269.875	10.625	265.114	10.4376	1.5	1.5	3.3	3.3	2570	7440	3806/355.6/HCC9	139
355.6	14	488.95	19.25	317.5	12.5	317.5	12.5	1.5	1.5	3.3	3.3	3150	10000	M263349D/M263310-M263310D	177
355.6	14	488.95	19.25	317.5	12.5	317.5	12.5	1.5	1.5	3.3	3.3	4750	11000	M263349D/M263310-M263310D-XRS	165
368.3	14.5	523.875	20.625	382.588	15.0625	382.588	15.0625	3.3	3.3	6.4	6.4	6200	14800	HM265049DW/HM265010-HM265010D	274
374.65	14.75	501.65	17.948	250.825	9.875	260.35	10.25	1.5	1.5	3.3	3.3	3120	7550	EE231475D/231975-231976D	141
384.175	15.125	546.1	21.5	400.05	15.75	400.05	15.75	3.3	3.3	6.4	6.4	6120	16400	HM266449DW/HM266410-HM266410CD	310
384.175	15.125	546.1	21.5	400.05	15.75	400.05	15.75	1.5	1.5	6.4	6.4	5200	12000	HM266449DW/HM266410-HM266410D-XRS/C9YB2	293
385.762	15.1875	514.35	20.25	317.5	12.5	317.5	12.5	3.3	3.3	3.3	3.3	4150	11000	LM665949DW/LM665910-LM665910D	189
406.4	16	546.1	21.5	268.288	10.5625	288.925	11.375	1.5	1.5	6.4	6.4	4150	9450	EE234161D/234215-234216D	182
406.4	16	546.1	21.5	288.925	11.375	288.925	11.375	1.5	1.5	6.4	6.4	4200	10000	LM767749DW/LM767710-LM767710D	186

Basic dimensions (mm)	Chamfer dimensions	Basic load rating (KN)	Number	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	rmin(axial)	rmin(radial)	r1min(axial)	r1min(radial)	Cr	Cor
406.4	16	546.1	21.5	330	12.9921	330	12.9921	1.5	1.5	6.4	6.4	4900	12500	3806/406.4	223
406.4	16	565.15	22.25	381	15	381	15	3.3	3.3	6.4	6.4	5900	15200	M267949D/M267910-M267910XD	298
406.4	16	590.55	23.25	400.05	15.75	400.05	15.75	3.3	3.3	6.4	6.4	6850	16300	EE833161D/833232-833233D	371
409.575	16.125	546.1	21.5	334.962	13.1875	334.962	13.1875	1.5	1.5	6.4	6.4	4700	11600	M667947DW/M667910-M667910D	206
409.575	16.125	546.1	21.5	334.962	13.1875	334.962	13.1875	1.5	1.5	6.4	6.4	3470	11500	M667947D/M667910-M667910D	213
409.575	16.125	546.1	21.5	334.962	13.1875	334.962	13.1875	1.5	1.5	6.4	6.4	4150	10400	M667947DW/M667910-M667910D-XRS/HEC9YB2	205
415.9

Four-Row Tapered Roller Bearing Inch Series
