Double Row Tapered Roller Bearing D 25-120mm

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY
FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

Get Quotation

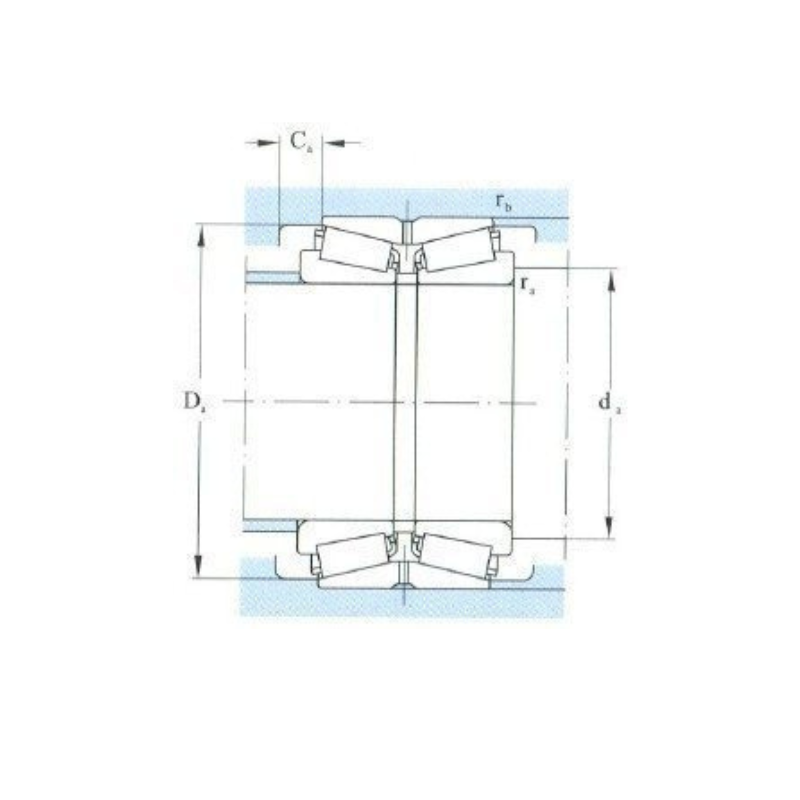

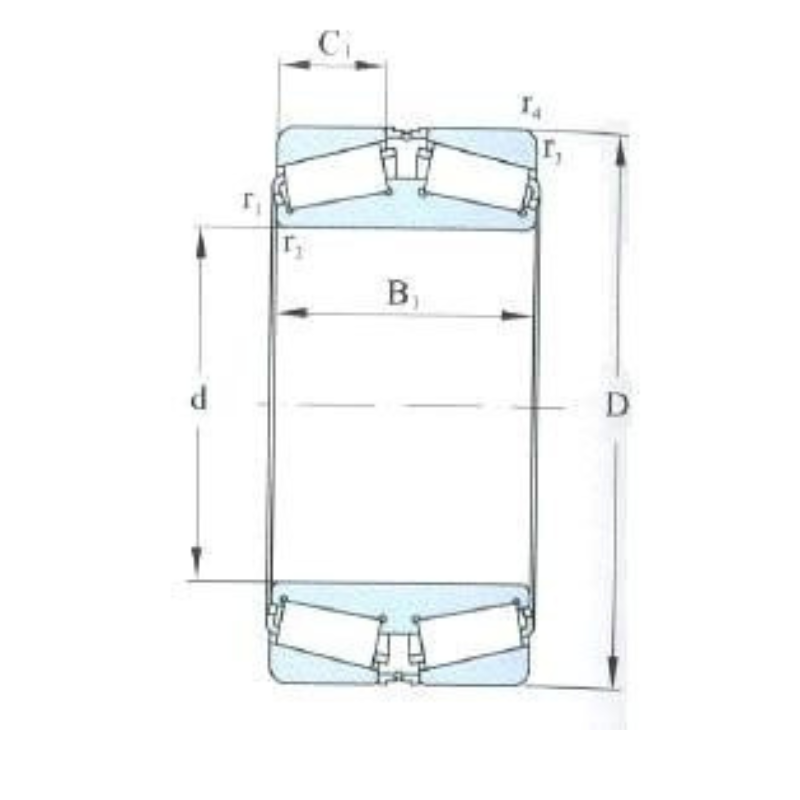

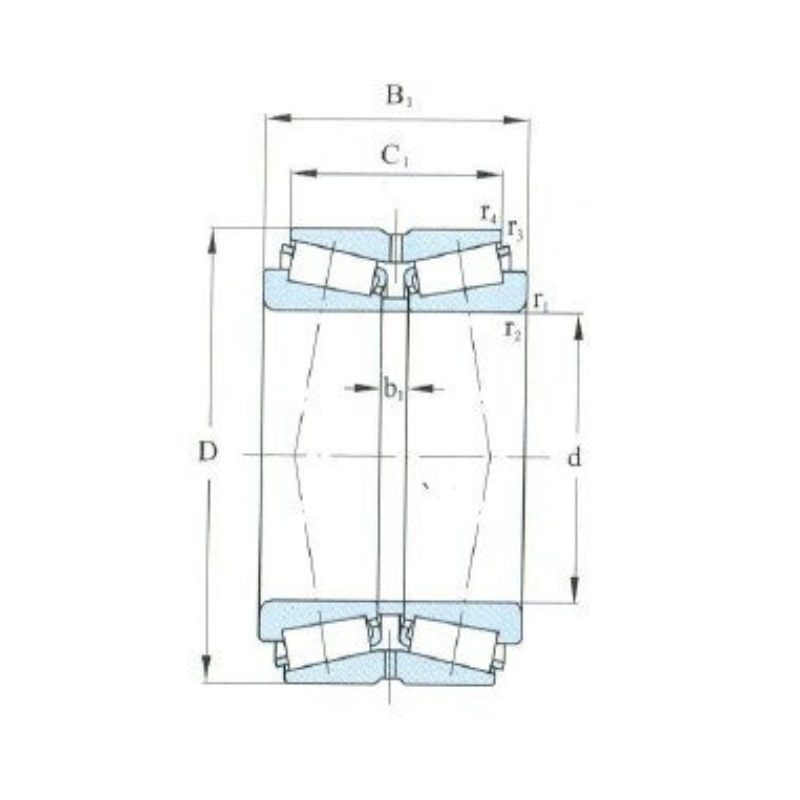

Boundary dimensions mm	Load rating kN	Limiting speed r/min	Bearing numbers	Mounting dimensions mm	Axial load factors	Weight (reference) (kg)
d	D	B1	C1	b1	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	da min	Da min	Ca min	ra max	rb max	e	Y1	Y2	Y0
25	62	42	31.5	8	1.5	0.6	66.5	100	4600	5600	350305B	32	59	5.5	1.5	0.6	0.83	0.8	1.2	0.8	—
30	72	47	33.5	9	1.5	0.6	85	125	4000	5000	350306B	37	68	7	1.5	0.6	0.83	0.8	1.2	0.8	—
35	80	51	35.5	9	2	0.6	108	160	3600	4500	350307B	44	76	8	2	0.6	0.83	0.8	1.2	0.8	—
40	80	55	43.5	9	1.5	0.6	128	188	3800	4500	352208	47	75	6	1.5	0.6	0.37	1.8	2.7	1.8	1.18
40	90	56	39.5	10	2	0.6	132	170	3200	4000	350308B	49	87	8.5	2	0.6	0.83	0.8	1.2	0.8	1.56
50	90	49	39	9	1.8	0.9	125	184	3400	4500	97210	49	87	6	1.8	0.9	0.42	1.61	2.39	1.57	1.24
50	90	55	43.5	9	1.5	0.6	145	218	3200	3800	352210	57	86	6	1.5	0.6	0.42	1.6	2.4	1.6	1.36
50	110	64	43.5	10	2.5	0.6	175	260	2700	3400	350310B	60	105	10.5	2.1	0.6	0.83	0.8	1.2	0.8	2.65
55	90	54	21	—	0.5	1.5	165	310	3300	4400	3187111	—	—	—	—	—	0.31	2.16	3.22	2.12	1.73
55	100	60	48.5	10	2	0.6	175	270	2800	3400	352211	64	96	6	2	0.6	0.4	1.7	2.5	1.6	1.85
55	120	70	49	12	2.5	0.6	208	305	2400	3000	350311B	65	114	10.5	2.1	0.6	0.83	0.8	1.2	0.8	3.92
60	110	66	54.5	10	2	0.6	215	330	2600	3200	352212	69	105	6	2	0.6	0.4	1.7	2.5	1.6	—
60	130	74	51	12	3	1	235	350	2300	2800	350312B	72	124	11.5	2.5	1	0.83	0.8	1.2	0.8	—
65	120	73	61.5	11	2	0.6	260	410	2200	3000	352213	74	115	6	2	0.6	0.4	1.7	2.5	1.6	2.49
65	140	79	53	13	3	1	268	410	2000	2600	350313B	77	134	13	2.5	1	0.83	0.8	1.2	0.8	5.16
70	125	74	61.5	12	2	0.6	272	440	2200	2800	352214	79	120	6.5	2	0.6	0.42	1.6	2.4	1.6	3.56
70	150	83	67	13	3	1	302	460	1900	2400	350314B	82	143	13	2.5	1	0.83	0.8	1.2	0.8	6.23
75	130	74	61.5	12	2	0.6	275	445	2000	2600	352215	84	126	6.5	2	0.6	0.44	1.6	2.3	1.5	3.68
75	160	88	60	14	3	1	338	510	1700	2200	350315B	87	153	14	2.5	1	0.83	0.8	1.2	0.8	—
80	140	56.75	22	—	0.7	2	228	356	2100	2800	187216	—	—	—	—	—	0.42	1.61	2.39	1.57	3.28
–	140	78	63.5	12	2.5	0.6	320	530	1900	2400	352216	90	135	7.5	2.1	0.6	0.42	1.6	2.4	1.6	4.85
–	170	94	63	16	3	1	370	590	1600	2200	350316B	92	161	15.5	2.5	1	0.83	0.8	1.2	0.8	—
85	150	86	69	14	2.5	0.6	368	600	1700	2200	352217	95	143	8.5	2.1	0.6	0.42	1.6	2.4	1.6	5.85
85	180	99	66	17	4	1	408	660	1400	2200	350317B	99	171	16.5	3	1	0.83	0.8	1.2	0.8	—

Boundary dimensions mm	Load rating kN	Limiting speed r/min	Bearing numbers	Mounting dimensions mm	Axial load factors	Weight (reference) (kg)
d	D	B1	C1	b1	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	da min	Da min	Ca min	ra max	rb max	e	Y1	Y2	Y0
90	160	94	77	14	2.5	0.6	440	720	1600	2200	352218	100	153	8.5	2.1	0.6	0.42	1.6	2.4	1.6	7.35
90	190	103	70	17	4	1	455	738	1300	1900	350318B	104	181	16.5	3	1	0.83	0.8	1.2	0.8	—
95	170	100	83	14	3	1	492	835	1400	2000	352219	107	163	8.5	2.5	1	0.42	1.6	2.4	1.6	9.04
95	200	109	74	19	4	1	502	830	1300	1700	350319B	109	189	17.5	3	1	0.83	0.8	1.2	0.8	—
100	180	107	87	15	3	1	555	925	1400	1900	352220	112	172	10	2.5	1	0.42	1.6	2.4	1.6	10.7
100	215	124	81	22	4	1	602	1010	1100	1400	350320B	114	204	21.5	3	1	0.83	0.8	1.2	0.8	—
105	190	125	100	—	3	1.3	575	1050	1500	2000	350620D1	—	—	—	—	—	0.36	1.85	2.76	1.81	14.9
105	190	115	95	15	3	1	618	1080	1300	1700	352221	117	182	10	2.5	1	0.42	1.6	2.4	1.6	13.1
105	225	127	83	21	4	1	640	1080	1100	1400	350321B	119	213	22	3	1	0.83	0.8	1.2	0.8	—
110	180	95	76	11	2	0.6	422	840	1300	1700	352122	120	173	10.5	2	0.6	0.25	2.7	4	2.6	10
110	200	121	101	15	3	1	698	1210	1200	1600	352222	122	192	10	2.5	1	0.42	1.6	2.1	1.6	15.5
110	240	137	87	23	4	1	752	1290	1000	1300	350322B	124	226	25	3	1	0.83	0.8	1.2	0.8	—
120	200	110	90	14	2	0.6	550	1060	1100	1500	352124	—	—	—	—	—	0.30	2.25	3.43	2.2	12.6
120	215	87	34	—	0.8	2.5	520	890	1400	1900	187224E	—	—	—	—	—	0.44	1.55	2.31	1.52	18.9
120	215	132	106	16	2.5	0.9	775	1470	1400	1900	57524	—	—	—	—	—	0.41	1.64	2.44	1.6	13.4
120	215	132	109	16	3	1	775	1360	1100	1400	352224	132	206	11.5	2.5	1	0.44	1.6	2.3	1.5	19.6
120	260	148	96	24	4	1	862	1490	900	1200	350324B	134	246	26	3	1	0.83	0.8	1.2	0.8	—

Double Row Tapered Roller Bearing D 25-120mm
