Inch Series Tapered Roller Bearing(Single Row) Outer Ring With Rib D 30.162-123.825mm
WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY
FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

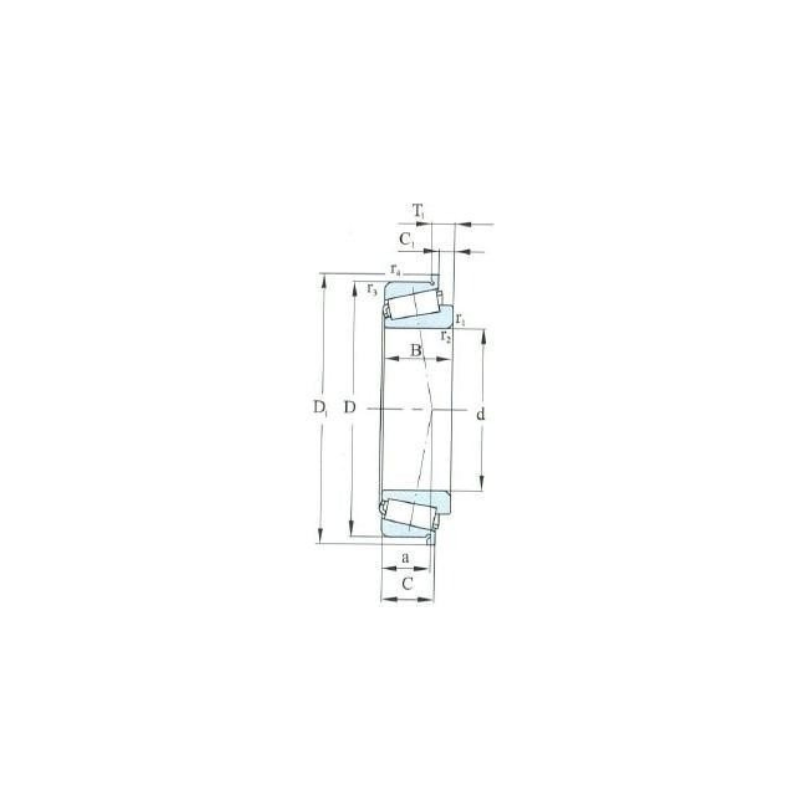

| Boundary dimensions mm | Load rating kN | Limiting speed r/min | Bearing number cone/cup | Load centre a mm | Weight (reference) (kg) | ||||||||||
| d | D | T1 | B | C | C1 | D1 | r1,2 min | r3,4 min | Cr | Cor | Grease | Oil | |||
| 30.162 | 69.85 | 8.725 | 25.375 | 19.05 | 3.962 | 73.711 | 0.8 | 1.5 | 69 | 81.5 | 5700 | 7600 | 2559/2523B | 14 | 0.483 |
| 82.55 | 139.992 | 14.288 | 36.098 | 28.575 | 6.35 | 146.24 | 3.5 | 3.3 | 182 | 268 | 2400 | 3400 | 580/572B | 31 | 2.29 |
| 92.075 | 152.4 | 15.875 | 36.322 | 30.162 | 6.35 | 158.648 | 3.5 | 3.3 | 189 | 294 | 2000 | 3000 | 598/592B | 37 | 2.78 |
| 101.6 | 180.975 | 17.462 | 48.006 | 38.1 | 7.938 | 188.798 | 3.5 | 3.3 | 259 | 368 | 2000 | 2700 | 780/722B | 39 | 4.86 |
| 107.95 | 165.1 | 15.875 | 36.512 | 26.988 | 6.35 | 171.348 | 3.5 | 3.3 | 191 | 315 | 1900 | 2800 | 52425E/56650B | 38 | 2.74 |
| 123.825 | 182.562 | 12.7 | 38.1 | 33.338 | 6.35 | 188.811 | 3.5 | 3.3 | 224 | 435 | 1700 | 2400 | 48286/48220B | 34 | 3.55 |
