Inch Series Tapered Roller Bearing(Single Row) D 215.900-1016mm

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY

FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

Get Quotation

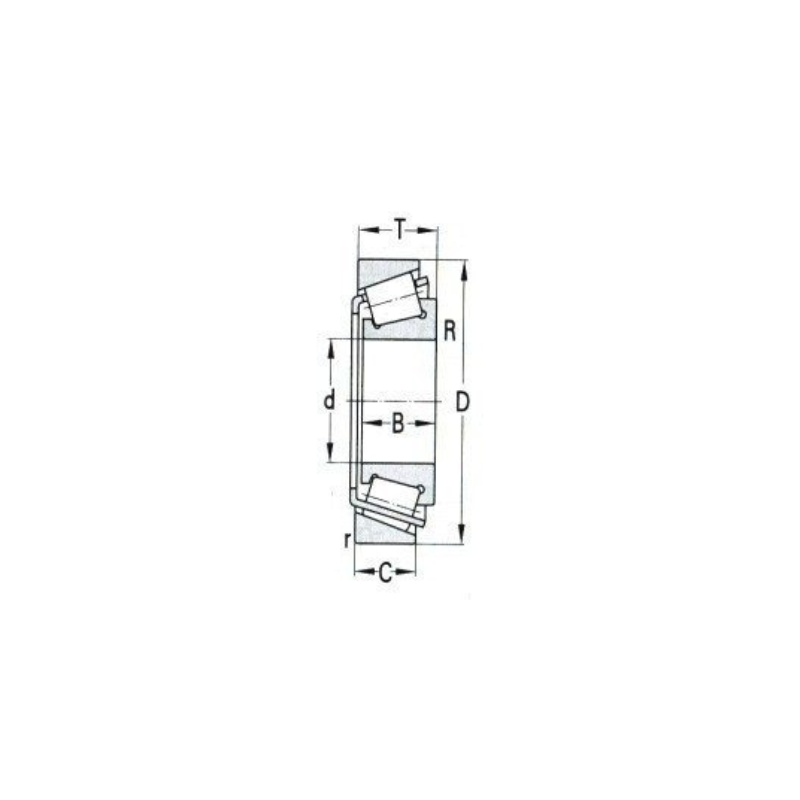

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	C(mm)	C(inch)	rmin	Rmin	Cr	Cor	Grease	Oil	e	Y	Yo	a
216.408	8.52	285.750	11.25	46.038	1.8125	46.038	1.8125	34.924	1.375	3.3	3.5	375	840	1000	1500	LM742747/LM742710	0.48	1.25	0.7	60	7.95
216.713	8.532	285.750	11.25	46.038	1.8125	46.038	1.8125	34.924	1.375	3.3	3.5	375	840	1000	1500	LM742747A/LM742710	0.48	1.25	0.7	60	7.95
220.662	8.6875	314.325	12.375	61.912	2.4375	61.912	2.4375	49.212	1.9375	3.3	6.4	620	1220	1000	1500	KM244249/KM244210	0.33	1.88	0.99	58	14.9
228.6	9	358.775	14.125	71.438	2.8125	71.438	2.8125	53.975	2.125	3.3	3.5	750	1500	950v	1300	KM249732/KM249710-1	0.33	1.8	0.99	65	27.2
228.6	9	488.95	19.25	123.825	4.875	111.125	4.375	73.025	2.875	6.4	6.4	1820	2490	750	1000	HH949549/HH949510	0.94	0.64	0.35	174	101
230.188	9.0625	317.5	12.5	47.625	1.875	52.388	2.0625	36.512	1.4375	3.3	3.3	520	985	900	1200	LM245846/LM245810	0.31	1.9	1.1	49	10.6
231.775	9.125	300.038	11.8125	33.338	1.3125	31.750	1.25	23.812	0.9375	3.3	3.3	212	420	950	1300	544091/544118A	0.4	1.5	0.8	49	5.40
231.775	9.125	317.5	12.5	47.625	1.875	52.388	2.0625	36.512	1.4375	3.3	3.3	520	985	900	1200	LM245848/LM245810	0.31	1.9	1.1	49	10.6
231.775	9.125	336.55	13.25	65.088	2.5625	65.088	2.5625	50.8	2	3.3	6.4	640	1360	850	1200	KM246942/KM246910	0.33	1.8	0.99	61	18.5
234.95	9.25	384.175	15.125	112.712	4.4375	112.712	4.4375	90.488	3.5625	6.4	6.4	1360	2540	750	1000	KH247549/KH247510	0.33	1.88	0.99	84	50.0
237.33	9.3437	336.55	13.25	65.088	2.5625	65.088	2.5625	50.8	2	3.3	6.4	640	1360	850	1200	KM246949/KM246910	0.33	1.8	0.99	61	17.5
241.3	9.5	444.5	17.5	101.6	4	100.012	3.9375	76.2	3	4.8	6.4	1340	2000	750	1000	KEE923095/K923175	0.34	1.78	0.98	83	65.9
241.3	9.5	508	20	117.475	4.625	95.25	3.75	73.025	2.875	6.4	6.4	1340	2060	670	900	KEE390095/K390200	0.94	0.64	0.35	132	96.4
247.65	9.75	346.075	13.625	63.5	2.5	63.5	2.5	50.8	2	6.4	6.4	670	1310	850	1200	KM348449/KM348410	0.34	1.75	0.96	61	17.4
247.65	9.75	406.4	16	115.888	4.5625	117.475	4.625	93.662	3.6875	6.4	6.4	1690	3200	750	1000	HH249949/HH249910	0.33	1.8	0.99	87	58.0
254*	10	324.975*	12.7943	39	–	41.5	–	28	–	3.3	1.5	345	800	850	1200	1-7009	0.56	1.07	0.59	71	8.06
254*	10	324.975*	12.7943	39	–	41.5	–	28	–	3.3	1.5	365	800	850	1200	L848849SH/L848810SH	0.56	1.07	0.59	71	8.06
254*	10	533.4	21	133.35	5.25	120.65	4.75	77.788	3.0625	6.4	6.4	365	800	850	1200	HH953749/HH953710	0.94	0.64	0.35	179	129
255.6	10.063	342.9	13.5	57.15	2.25	63.5	2.5	44.45	1.75	3.3	1.5	665	1330	850	1200	M349547SH/M349510SH	0.35	1.73	0.95	59	14.4
257.175	10.125	342.9	13.5	57.15	2.25	57.15	2.25	44.45	1.75	3.3	6.4	725	880	850	1200	KM349549/KM349510	0.35	1.73	0.95	80	14.0
257.175	10.125	358.775	14.125	71.438	2.8125	76.2	3	53.975	2.125	3.3	1.5	750	1520	850	1200	M249747SH/M249710SH	0.33	1.8	0.99	64	21.7
260.35	10.25	422.275	16.625	86.121	3.3906	79.771	3.1406	66.675	2.625	3.3	6.8	1100	1800	900	1300	HM252348/HM252310	0.33	1.8	0.99	78	42.8
263.525	10.375	325.438	12.812528.575	–	1.125	28.575	1.125	25.400	1	1.5	1.5	1280	1790	1000	1500	38880/38820	0.37	1.6	0.9	49	54.2
266.7	10.5	355.6	14	57.15	2.25	57.15	2.25	44.45	1.75	3.3	3.5	15	800	850	1200	KLM451349/KLM451310	0.36	1.67	0.92	62	15.1

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	C(mm)	C(inch)	rmin	Rmin	Cr	Cor	Grease	Oil	e	Y	Yo	a
266.7	10.5	393.7	15.5	73.817	5.125	69.85	2.75	50.005	1.9687	6.4	6.4	770	1460	750	1000	KEE275105/K275155	0.4	1.49	0.82	75	27.8
266.7	–	444.5	17.5	120.65	4.75	117.475	4.625	88.9	3.5	6.4	6.4	1610	3050	670	900	KH852849/KH852810	0.58	1.04	0.57	121	73.1
273.05	10.75	393.7	15.5	73.817	5.125	69.85	2.75	50.005	1.9687	6.4	6.4	770	1460	750	1000	KEE275108/K275155	0.4	1.49	0.82	75	26.3
288.925	11.375	406.4	16	77.788	3.0625	77.788	3.0625	60.325	2.375	3.3	6.4	1250	1900	670	900	M255449/M255410	0.34	1.78	0.98	72	30.5
292.100	11.5	374.650	14.75	47.625	1.875	47.625	1.875	34.925	1.375	3.3	3.5	1080	1590	780	1050	L555249/L555210	0.4	1.5	0.8	65	12.2
304.8	12	393.7	15.5	50.8	2	50.8	2	38.1	1.5	3.3	6.4	580	1210	670	900	KL357049/KL357010	0.36	1.68	0.92	64	14.6
304.8	12	406.4	16	63.5	2.5	63.5	2.5	47.625	1.875	3.3	6.4	2200	2800	670	900	LM757049/LM757010	0.44	1.38	0.76	79	21.2
317.5	12.5	447.675	17.625	85.725	3.375	85.725	3.375	68.262	2.6875	3.3	3.5	960	2330	670	900	HM259048/HM259010	0.33	1.8	0.99	80	41.3
330.2	13	415.925	16.375	47.625	1.875	47.625	1.875	34.925	1.375	3.3	3.5	475	1140	670	900	KL860049/KL860010	0.5	1.2	0.7	83	14.3
330.2	13	482.600	19	85.725	3.375	80.167	3.1562	60.325	2.375	3.5	6.4	1200	2480	600	830	EE526130/526190	0.4	1.5	0.8	90	49.2
333.375	13.125	469.900	18.5	90.488	3.5625	90.488	3.5625	71.438	2.8125	3.3	6.4	1320	2820	600	830	HM261049/HM261010	0.33	1.8	1	85	47.6
343.154	13.51	450.850	17.75	66.675	2.625	66.675	2.625	52.388	2.0625	3.5	8.5	930	2180	650	850	LM361649A/LM361610	0.35	1.7	0.9	75	28.3
346.075	13.625	488.950	19.25	95.250	3.75	95.250	3.75	74.612	2.9375	3.3	6.4	845	1180	600	830	HM262749/HM262710	0.33	1.8	1	88	55.8
355.6	14	482.6	19	60.320	2.3748	55.560	2.1874	38.1	1.5	7	7	565	1180	600	830	306/355.6-1	0.48	1.27	0.7	92	26.6
371.5	14.626	622.3	24.5	147.638	5.8125	131.762	5.1875	82.55	3.25	12.7	14.3	2300	3600	420	580	H961649/H961610	0.94	0.64	0.35	210	180
377.825	14.875	522.288	20.5625	85.725	3.375	84.138	3.3125	61.912	2.4375	3.3	6.4	1170	2580	670	900	KLM565946/KLM565910	0.38	1.56	0.86	93	51.9
380.1	14.9646	480	18.8976	50	1.9685	48.08	1.8929	35.08	1.3811	4	6	590	1490	560	750	306/380.1	0.5	1.2	0.7	93	20.8
381	15	479.425	18.875	49.212	1.9375	47.625	1.875	34.925	1.375	3.3	6.4	590	1490	560	750	L865547/L865512	0.5	1.2	0.7	92	20.4
381	15	522.288	20.5625	85.725	3.375	84.138	3.3125	61.912	2.4375	3.3	6.4	1170	2580	650	870	KLM565949/KLM565910	0.38	1.56	0.86	93	51.2
384.175	15.125	546.100	21.5	104.775	4.125	104.775	4.125	82.550	3.25	6.4	6.4	1850	4150	530	700	HM266449/HM266410	0.33	1.8	1	96	77.6
403.225	15.875	460.375	18.125	28.575	1.125	28.575	1.125	20.638	0.8125	3.3	3.5	240	760	560	750	LL566848/LL566810	0.4	1.5	0.8	70	6.73
406.4	16	546.1	21.5	76.2	3	61.12	2.4063	55.562	2.1875	6.4	6.4	840	1830	630	850	KEE234160/K234215	0.48	1.26	0.69	107	41.8
406.4	16	549.275	21.625	85.725	3.375	84.138	3.3125	61.962	2.4394	3.3	6.4	1350	3000	600	800	LM567949/LM567910	0.4	1.5	0.8	100	54.0
406.4	16	574.625	22.623	76.2	3	67.866	2.6719	50.8	2	3.3	6.8	920	2030	500	650	EE285160/EE285226	0.5	1.2	0.7	114	54.2

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	C(mm)	C(inch)	rmin	Rmin	Cr	Cor	Grease	Oil	e	Y	Yo	a
406.4	16	762	30	180.975	7.125	161.925	6.375	107.950	4.25	12.7	12.7	3650	6050	350	480	H969249/H969210	0.94	0.64	0.35	250	322
415.925	16.375	590.55	23.25	114.3	4.5	114.3	4.5	88.9	3.5	6.4	6.4	1810	4030	480	650	M268749/M268710	0.33	1.8	0.99	104	96.6
430.212	16.9375	603.250	23.75	76.2	3	73.025	2.875	50.8	2	6.4	6.4	1050	2300	480	650	EE241693/242375	0.52	1.15	0.6	122	58.6
447.625	17.623	635	25	120.650	4.75	120.650	4.75	95.250	3.75	6.4	6.4	2300	5450	430	560	M270749/M270710	0.33	1.8	1	111	121
457.2	18	573.088	22.5625	74.612	2.9375	74.612	2.9375	57.150	2.25	6.4	6.4	1100	2980	480	630	L570649/L570610	0.4	1.5	0.8	101	43.8
457.2	18	603.250	23.75	85.725	3.375	84.138	3.3125	60.325	2.375	3.3	6.4	1420	3390	450	600	LM770949/LM770910	0.46	1.3	0.7	115	62.0
457.2	18	615.950	24.25	85.725	3.375	85.725	3.375	66.675	2.625	6.4	6.4	1450	3750	420	580	LM272235/LM272210	0.33	1.8	1	98	73.2
457.2	18	660.400	26	91.280	3.5937	85.725	3.375	62.705	2.4687	6.4	10.5	1750	3600	420	580	EE737181/737260	0.37	1.6	0.9	107	91.5
482.6	19	634.873	24.995	80.962	3.1875	80.962	3.1875	63.5	2.5	3.3	6.4	1430	3600	420	580	EE243190/243250	0.35	1.7	0.9	98	60.8
488.95	19.25	634.873	24.995	84.138	3.3125	84.138	3.3125	61.912	2.4375	3.3	6.4	1420	3600	420	580	LM772748/LM772710	0.48	1.25	0.7	124	64.5
498.475	19.625	634.873	24.995	80.962	3.1875	80.962	3.1875	63.5	2.5	3.3	6.4	1340	2950	420	580	EE243196/243250/HE	0.35	1.7	0.9	98	58.3
520.7	20.5	736.6	29	88.9	3.5	81.758	3.2188	53.975	2.125	3.3	6.4	1630	3350	380	500	EE982051/982900	0.48	1.25	0.7	134	101
536.575	21.125	761.873	29.995	146.05	5.75	146.05	5.75	114.3	4.5	6.4	6.4	3300	7950	360	480	M276449/M276410	0.33	1.8	1	134	202
536.575	21.125	820	32.2835	152	5.9843	146	5.748	112	4.4094	5	6	3850	7750	340	450	306/536X4	0.43	1.4	0.8	161	273
539.750	21.25	635	25	50.8	2	50.8	2	38.1	1.5	6.4	6.4	780	2150	400	530	LL575349/LL575310	0.4	1.5	0.8	102	27.2
607.72	23.926	787.4	31	93.662	3.6875	93.662	3.6875	69.85	2.75	6.4	6.4	2200	2800	340	450	EE649239/649310	0.38	1.58	0.87	124	108
609.6	24	787.4	31	93.662	3.6875	93.662	3.6875	69.85	2.75	6.4	6.4	2120	5250	340	450	EE649240/649310	0.38	1.58	0.87	124	108
635	25	736.6	29	57.15	2.25	53.975	2.125	41.275	1.625	3.3	3.3	855	2640	350	470	80780/80720	0.44	1.35	0.8	124	37.3
660.4	26	812.8	32	95.25	3.75	95.25	3.75	73.025	2.875	6.4	6.4	1920	5550	310	420	L281147/L281110	0.33	1.8	1	123	106
660.4	–	939.8	37	136.525	5.375	127.08	5.0031	98.5	3.878	6.4	6.4	3700	8100	260	360	306/660.4	0.4	1.5	0.8	167	288
660.4	–	1000	39.3701	152.4	6	142.24	5.6	113.665	4.475	6.4	6.4	4300	9450	240	340	306/660.4-1	0.43	1.4	0.8	183	411
679.45	26.75	901.7	35.5	142.875	5.625	142.875	5.625	111.125	4.375	6.4	9.7	3550	8900	260	360	LM281849/LM281810	0.33	1.8	1	149	243
682.625	26.875	965.2	38	185.738	7.3125	185.810	7.3154	142.950	5.628	6.4	6.4	5050	12480	240	340	306/682X4-2	0.33	1.8	1	169	419
682.625	26.875	1080	42.5197	200	7.874	195	7.6772	142	5.5906	12	12	6650	13100	200	300	306/682X4-3	0.43	1.4	0.8	209	641

Boundary dimensions	Basic load rating KN	Limiting speed r/min	Bearing numbers	Axial load factors	Weight kg
d(mm)	d(inch)	D(mm)	D(inch)	T(mm)	T(inch)	B(mm)	B(inch)	C(mm)	C(inch)	rmin	Rmin	Cr	Cor	Grease	Oil	e	Y	Yo	a
685.8	27	876.3	34.5	93.662	3.6875	92.075	3.625	69.85	2.75	6.4	6.4	2100	4950	280	380	EE655270/655345	0.43	1.4	0.8	148	399
711.2	28	939.8	37	120.65	4.75	115.38	4.5425	73.33	2.887	6.4	6.4	2600	6150	220	320	306/711.2	0.75	0.8	0.45	254	207
723.9	28.5	914.4	36	84.137	3.3125	80.962	3.1875	60.325	2.375	6.4	5.5	2000	4850	260	360	EE755285/755360	0.37	1.6	0.9	137	116
749.3	29.5	990.6	39	159.5	6.2795	160.388	6.3145	123	4.8425	6.4	6.4	4500	11800	220	320	LM283649/LM283610	0.33	1.8	1	165	331
759.925	29.9183	889	35	69.85	2.75	69.85	2.75	50.8	2	3.3	3.3	1210	3750	260	360	LL483448/LL483418	0.37	1.6	0.9	132	67.2
760*	29.9213	889	35	88.9	3.5	88.9	3.5	72	2.8346	4	4	2200	3200	260	360	L183448/L183410	0.32	1.88	1.04	127	93.5
762	30	889	35	88.9	3.5	88.9	–	72	2.8346	4	4	2200	3200	260	360	L183449/L183410	0.32	1.88	1.04	127	91.9
774.7	30.5	965.2	38	93.662	3.6875	80.962	3.1875	66.675	2.625	3.3	6.4	1920	4850	220	320	EE752305/752380	0.4	1.5	0.8	158	130
801.688	31.5625	914.4	36	58.738	2.3125	58.738	2.3125	41.275	1.625	3.3	3.5	1050	3500	240	340	LL584449/LL584410	0.4	1.5	0.8	137	53.6
838.2	33	1041.4	41	93.662	3.6875	88.9	3.5	66.675	2.625	6.4	6.4	1850	4750	200	300	EE763330/763410	0.44	1.35	0.8	177	161
857.25	33.75	1092.2	43	120.65	4.75	111.125	4.375	76.2	3	6.4	19	2790	7300	190	280	EE157337/157430	0.57	1.05	0.6	228	244
928*	–	1060*	–	92	–	90	–	76	–	3.3	3.3	2120	7450	190	280	JL286948H/JL286910	0.33	1.8	1	152	117
930*	–	1060*	–	92	–	90	–	76	–	3.3	3.3	2120	7450	190	280	JL286949H/JL286910	0.33	1.8	1	152	115
977.9	38.5	1130.3	44.5	66.675	2.625	63.5	2.5	47.625	1.875	6.4	6.4	1430	4300	170	240	LL687949/LL687910	0.44	1.35	0.8	184	101
1016	40	1270	50	101.6	4	101.6	4	66.675	2.625	9.7	9.7	2700	7450	160	230	EE168400/168500	0.5	1.2	0.7	229	276
