Spherical Roller Bearing D 1180-1800mm
WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY
FOB Price:
Min.Order Quantity: 500-1000 Pieces
Supply Ability: 100000 Pieces/per Month
Port: Ningbo/Shanghai
Payment Terms: T/T,L/C

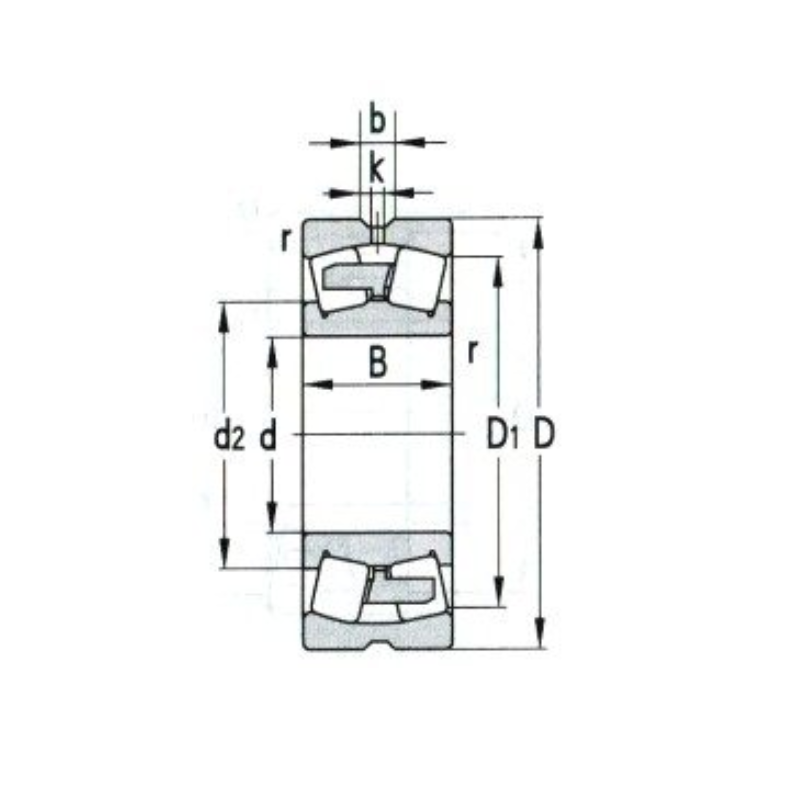

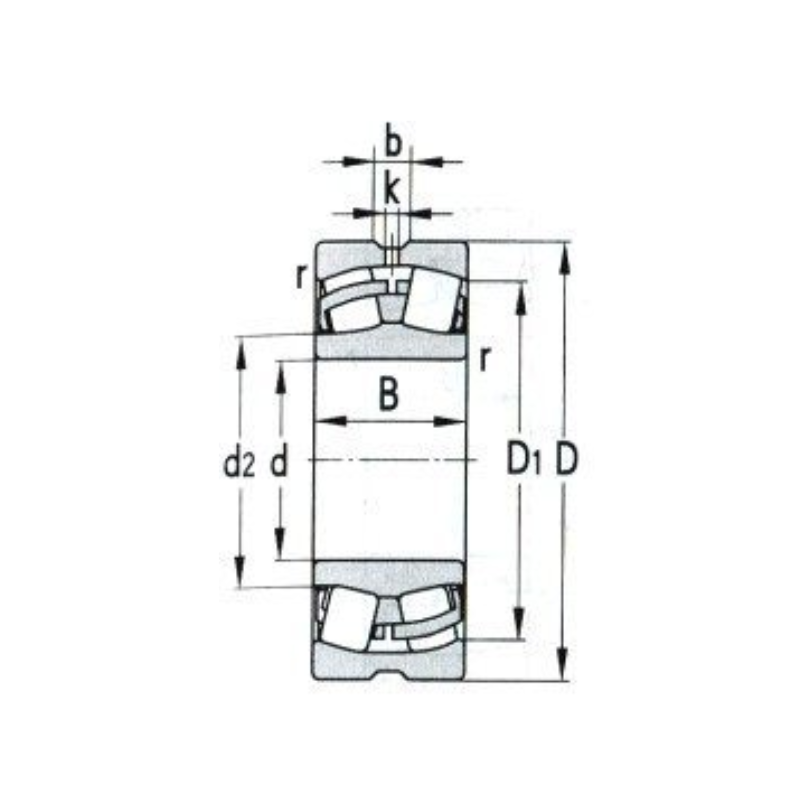

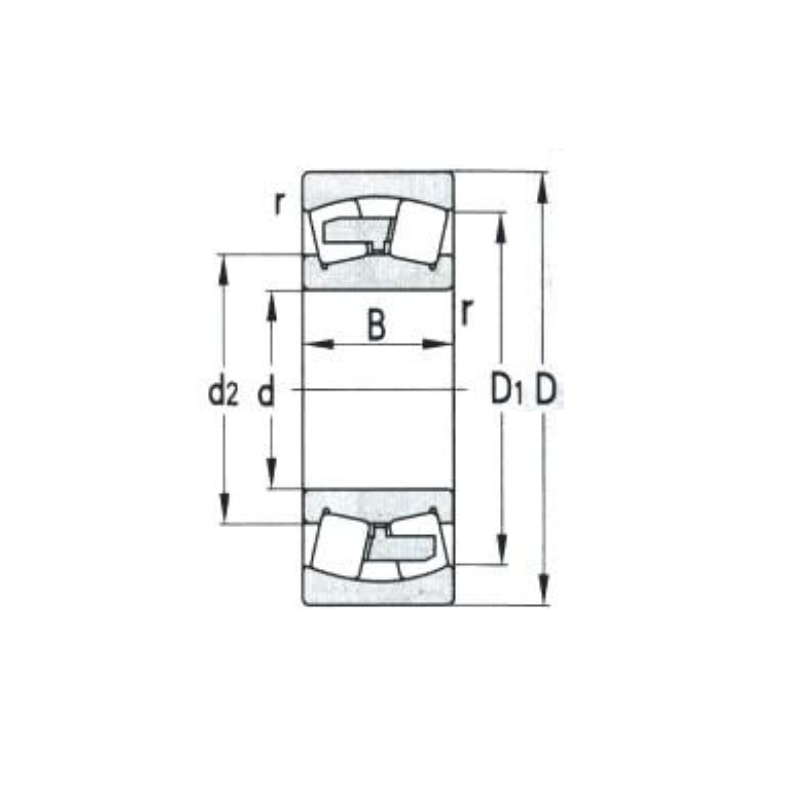

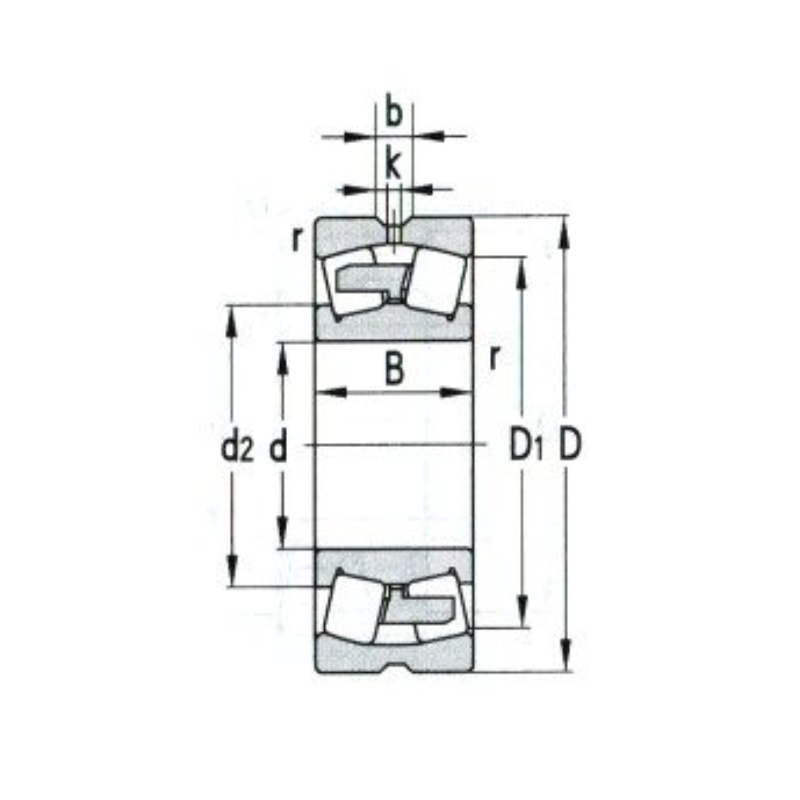

| Basic dimensions mm | Basic load rating KN | Limiting speed r/min | Bearing numbers | Other dimentions mm | Abutment and fillet dimensions (mm) | Axial load factors | Weight kg | ||||||||||||||
| d | D | B | rsmin | Cr | Cor | Grease | Oil | d2 | D1 | b | k | da(min) | Da(max) | ra(max) | e | y1 | y2 | y0 | |||
| 1180 | 1420 | 180 | 6 | 5600 | 18000 | 150 | 190 | 238/1180CAKF1A/W20 | - | 1254 | 1349 | - | 9 | 1180 | 1450 | 5 | 0.11 | 6.28 | 9.35 | 6.14 | 577 |
| 1180 | 1420 | 180 | 6 | 5340 | 17200 | 150 | 190 | 238/1180CAF3A/W20 | - | 1254 | 1349 | - | 9 | 1180 | 1450 | 5 | 0.11 | 6.28 | 9.35 | 6.14 | 580 |
| 1180 | 1420 | 243 | 6 | 7700 | 27200 | 135 | 160 | 248/1180CA/W33 | - | 1250 | 1344 | 22.3 | 12 | 1180 | 1450 | 5 | 0.14 | 4.80 | 7.20 | 4.50 | 790 |
| 1180 | 1420 | 243 | 6 | 7700 | 27200 | 135 | 160 | 248/1180CAK30/W33 | - | 1250 | 1344 | 22.3 | 12 | 1180 | 1450 | 5 | 0.14 | 4.80 | 7.20 | 4.50 | 770 |
| 1180 | 1540 | 272 | 7.5 | 10290 | 29600 | 110 | 150 | 239/1180CAKF3/W33X | 239/1180CAKF1/W33X | 1296 | 1432 | 24 | 12 | 1216 | 1536 | 6 | 0.16 | 4.20 | 6.30 | 4.00 | 1350 |
| 1180 | 1540 | 272 | 7.5 | 10700 | 29600 | 110 | 150 | 239/1180CAF3/W33X | - | 1296 | 1432 | 24 | 12 | 1216 | 1536 | 6 | 0.16 | 4.20 | 6.30 | 4.00 | 1390 |
| 1180 | 1540 | 355 | 7.5 | 13310 | 40000 | 110 | 150 | 249/1180CAF1/W33X | - | 1290 | 1422 | 22.3 | 12 | 1216 | 1536 | 6 | 0.20 | 3.42 | 5.09 | 3.34 | 1772 |
| 1180 | 1540 | 355 | 7.5 | 13900 | 40000 | 110 | 150 | 249/1180CAK30F3/W33 | - | 1290 | 1422 | 22.3 | 12 | 1216 | 1536 | 6 | 0.20 | 3.42 | 5.09 | 3.34 | 1742 |
| 1180 | 1660 | 355 | 9.5 | 10290 | 29600 | 110 | 150 | 230/1180CAF1/W33X | - | 1328 | 1509 | 24 | 12 | 1240 | 1600 | 8 | 0.20 | 3.42 | 5.09 | 3.34 | 2460 |
| 1250 | 1750 | 375 | 9.5 | 17500 | 44800 | 95 | 125 | 230/1250CA/W33 | - | 1412 | 1610 | 22.3 | 12 | 1285 | 1715 | 8 | 0.19 | 3.60 | 5.30 | 3.60 | 2850 |
| 1250 | 1750 | 375 | 9.5 | 17500 | 44800 | 95 | 125 | 230/1250CAK/W33 | - | 1412 | 1610 | 22.3 | 12 | 1285 | 1715 | 8 | 0.19 | 3.60 | 5.30 | 3.60 | 2760 |
| 1320 | 1600 | 280 | 6 | 9750 | 33400 | 85 | 115 | 248/1320CA/W33 | - | 1418 | 1513 | 22.3 | 12 | 1342 | 1578 | 5 | 0.15 | 4.50 | 6.70 | 4.50 | 1180 |
| 1320 | 1600 | 280 | 6 | 9750 | 33400 | 85 | 115 | 248/1320CA30/W33 | - | 1418 | 1513 | 22.3 | 12 | 1342 | 1578 | 5 | 0.15 | 4.50 | 6.70 | 4.50 | 1150 |
| 1320 | 1720 | 400 | 7.5 | 16000 | 49200 | 80 | 105 | 249/1320CA/W33 | - | ]446 | 1588 | 24 | 12 | 1350 | 1691 | 6 | 0.21 | 3.20 | 4.80 | 3.20 | 2510 |
| 1320 | 1720 | 400 | 7.5 | 16000 | 49200 | 80 | 105 | 249/1320CAK30/W33 | - | 1446 | 1588 | 24 | 12 | 1350 | 1691 | 6 | 0.21 | 3.20 | 4.80 | 3.20 | 2460 |
| 1320 | 1850 | 530 | 12 | 23200 | 63300 | 70 | 85 | 240/1320CAF3/W33T | - | 1485 | 1662 | 40 | 25 | 1390 | 1765 | 11 | 0.25 | 2.70 | 4.00 | 2.60 | 4540 |
| 1400 | 1820 | 425 | 9.5 | 20000 | 58500 | 70 | 85 | 249/1400CAF3/W33 | - | 1528 | 1681 | 22.3 | 12 | 1452 | 1768 | 8 | 0.20 | 3.42 | 5.09 | 3.34 | 2920 |
| 1500 | 1820 | 315 | 7.5 | 12000 | 40000 | 65 | 83 | 248/1500CA/W33 | - | 1608 | 1710 | 24 | 12 | 1528 | 1792 | 6 | 0.15 | 4.50 | 6.70 | 4.50 | 1730 |
| 1500 | 1820 | 315 | 7.5 | 12000 | 40000 | 65 | 83 | 248/1500CAK30F3/W20 | - | 1608 | 1710 | - | 12 | 1528 | 1792 | 6 | 0.15 | 4.50 | 6.70 | 4.50 | 1700 |
| 1800 | 2180 | 375 | 9.5 | 17400 | 62800 | 62 | 70 | 248/1800CA/W33 | - | 1935 | 2058 | 24 | 12 | 1832 | 2145 | 8 | 0.15 | 4.50 | 6.70 | 4.50 | 2920 |
| 1800 | 2180 | 375 | 9.5 | 17400 | 62800 | 62 | 70 | 248/1800CAK30/W33 | - | 1935 | 2058 | 24 | 12 | 1832 | 2145 | 8 | 0.15 | 4.50 | 6.70 | 4.50 | 2870 |
