4210 T , 4210-2RS T Double Row Deep Groove Ball Bearing
Double-Row Deep Groove Ball Bearings
The double-row design allows for a significantly higher load carrying capacity while still retaining the bearing’s low friction characteristics. Double-row bearings are usually just slightly wider than their single-row counterparts,have a considerably higher load carrying capacity.
Double row deep groove ball bearings of series 42 and 43 correspond in their structure and function to single row deep groove ball bearings arranged in pairs ,making them almost as versatile, practical.
The main dimensions of double row deep groove ball bearings correspond to DIN 625-3:2011.
4210 T , 4210- 2RS T double row Deep groove Ball bearing detail Specifications:
Material : 52100 Chrome Steel
Construction : Double Row
Seal Type : open type , 2RS
Limiting Speed : 6000 rpm
Weight : 0.58 kg

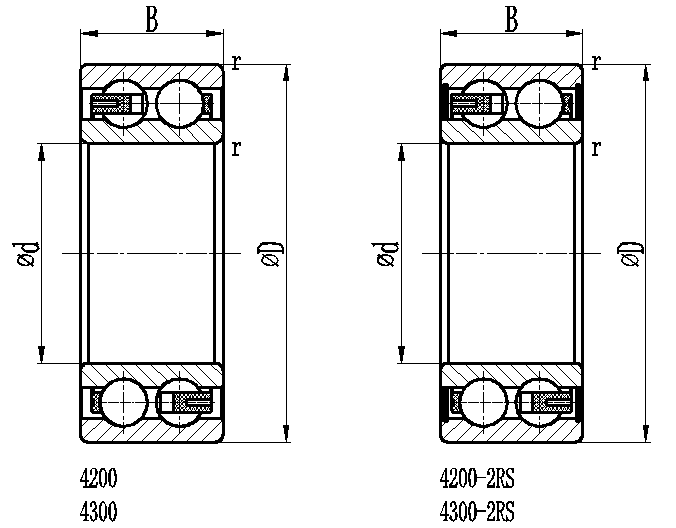

Main Dimensions:
Bore diameter (d) : 50 mm
Outer diameter (D) : 90 mm
Width (B) : 23 mm
Chamfer Dimension ( r) min. : 1.1 mm
Dynamic load ratings (Cr) : 35.63 KN
Static load ratings(Cor) : 34.68 KN
ABUTMENT DIMENSIONS
Abutment diameter shaft (da) min. : 57 mm
Abutment diameter housing (Da) max. : 83 mm
Radius of shaft or housing fillet (ra) max.: 1.0 mm
